Liquid Water Cooling Data Center Stainless Steel Three Piece Butterfly Valve
- Place of Origin:
- China
- Packing:
- Carton Case, Plywood Case
- Quantity:
- 50PCS
- Payment:
- T/T, L/C
- Medium:
- Liquid Cooling Water
- Material:
- SS304,SS316L
- Connection:
- Welding, Tri-Clamp, Thread
- Specification:
- 1"-4"
- Standard or Nonstandard:
- 3A, SMS, DIN
- Pressure:
- 10Bar
- Temperature:
- -40 Degree to 120 Degree
- Gasket:
- EPDM, Silicone, FKM

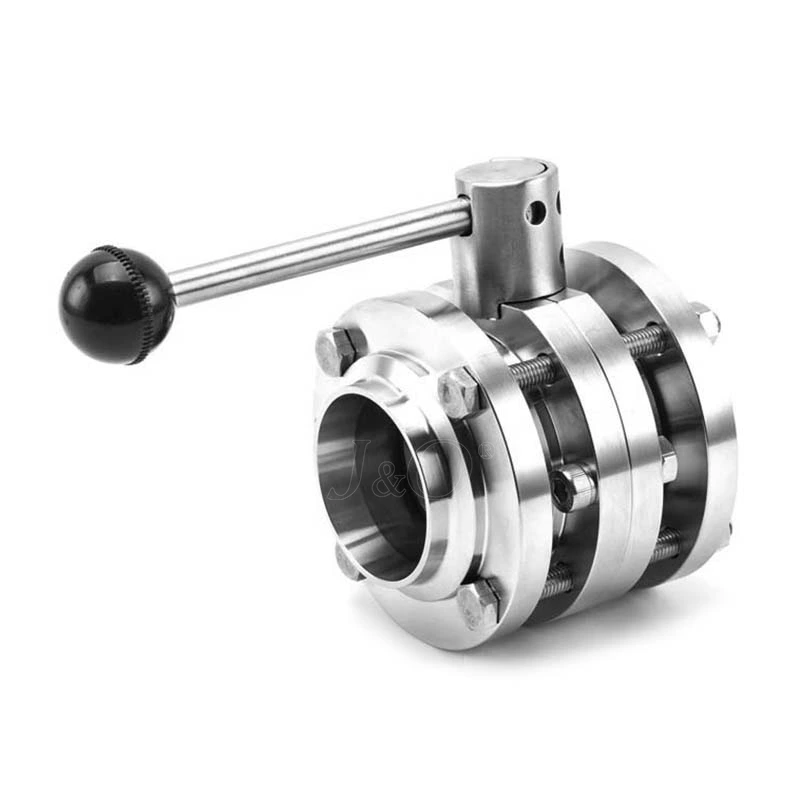

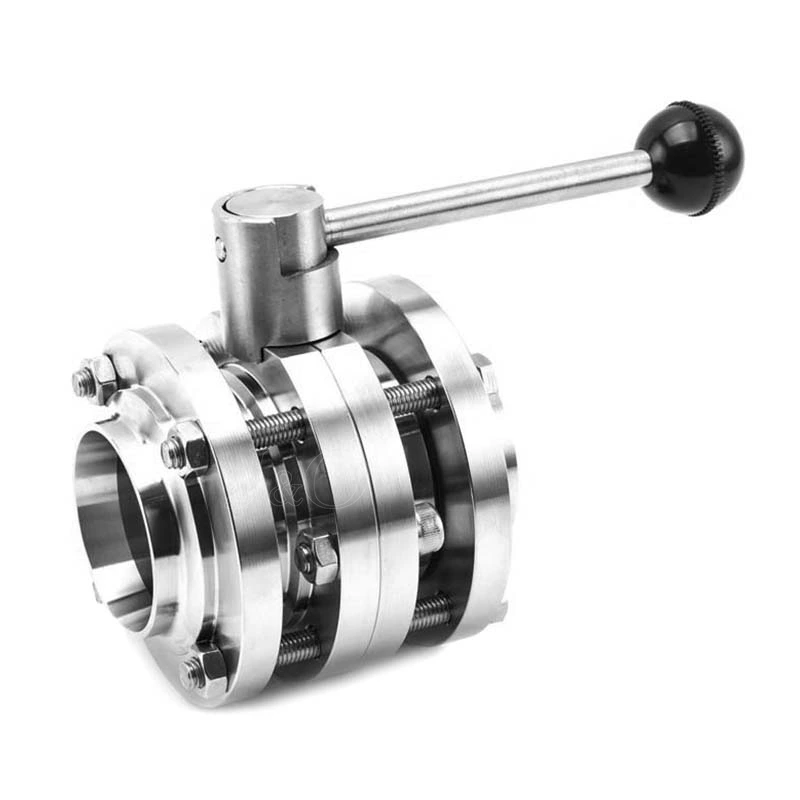

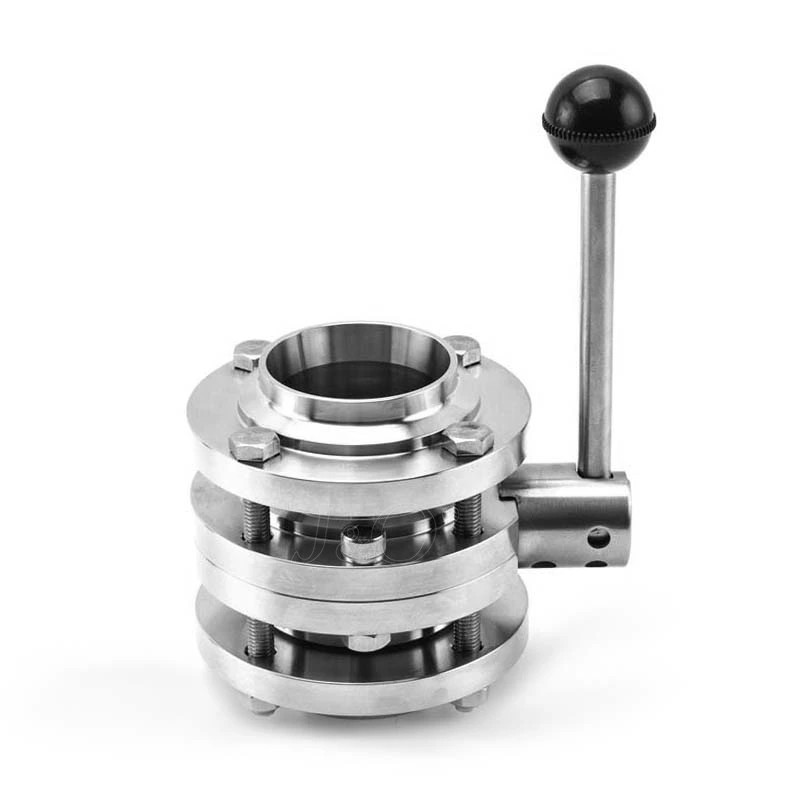

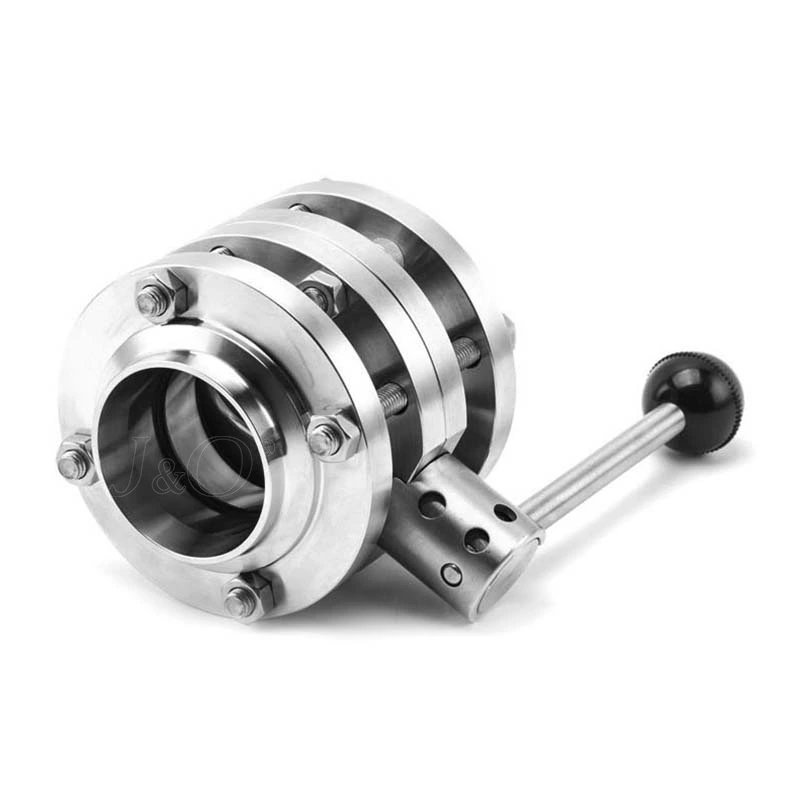

Liquid Cooling Data Center Stainless Steel Three Piece Butterfly Valve
#Data Center Butterfly Valve #Water Cooling Butterfly Valve #Liquid Cooling Butterfly Valve

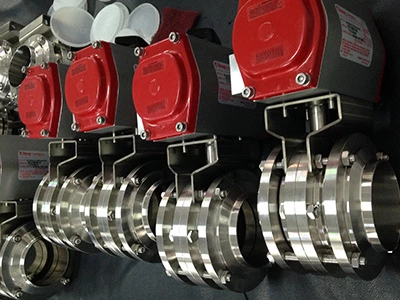

- Our Butterfly valve body could be offered with Weld end, Male end, female end, and Clamp end. Our butterfly valves can be installing with different type handles like 4 position pull handle, 12 position gripper handle and 10 more other types or installing with actuator for automatically control for your widely using.
- The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
- All of the products have been 100% press tested before shipping.
- It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
- EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.

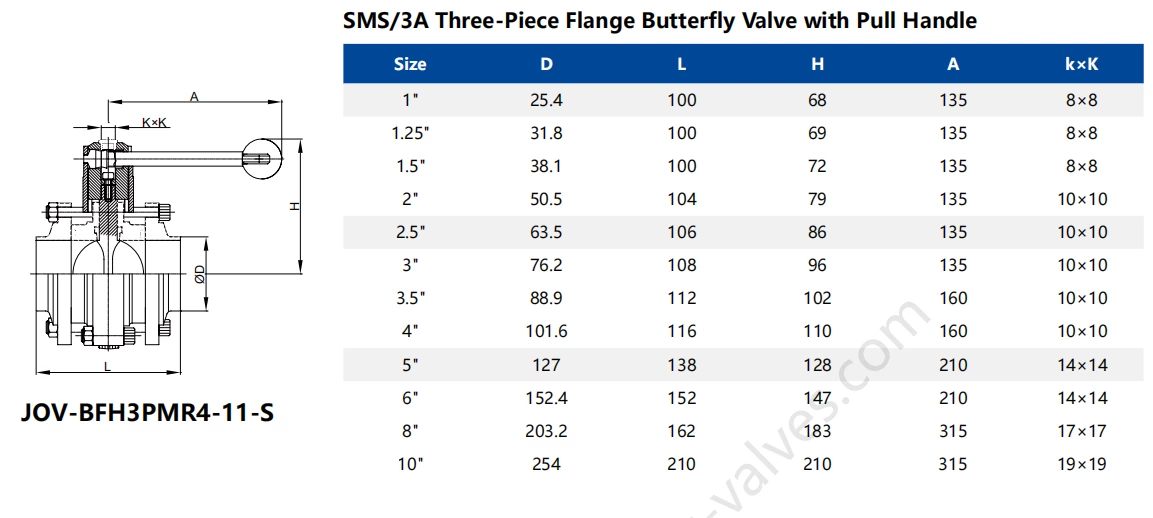

Product Description
| Product Name: | Liquid Cooling Data Center Stainless Steel Three Piece Butterfly Valve |
| Valve Body Material: | 1.4404/1.4301, SS304/SS316L |
| Seal Material: | EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
| Mex working pressure: | 20Bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | DN10-DN150,3/4"-4" |
| Availably connection: | weld |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Manual |
| Control: | Sensor, C-TOP, C-top controller(AS-I) |
| Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
| Handle application: | stainless steel pull handle |
| Application scope: | Liquid Cooling, Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc |
