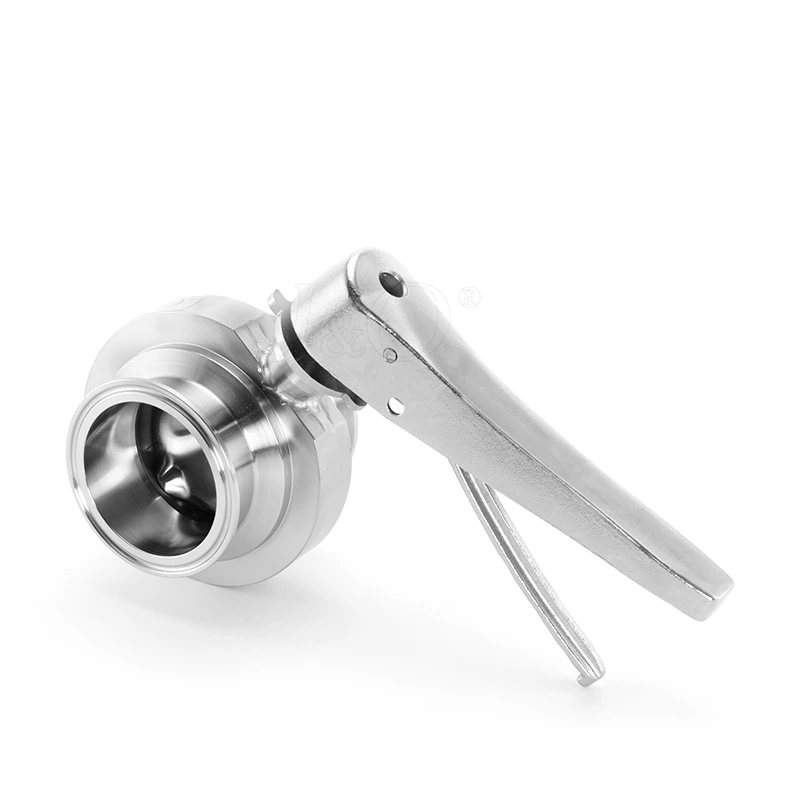

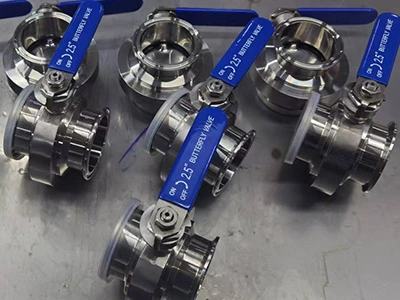

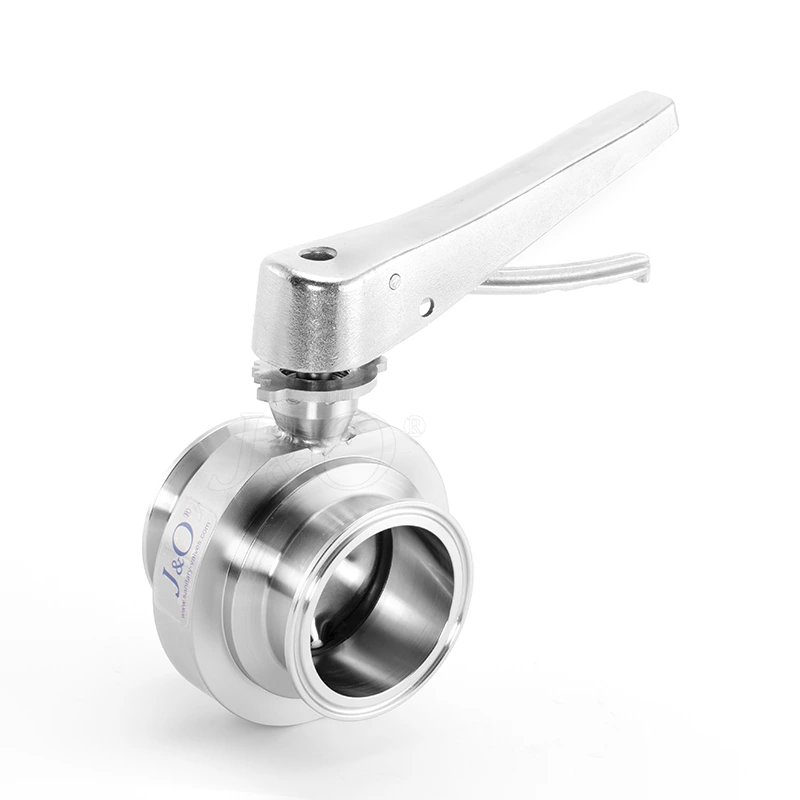

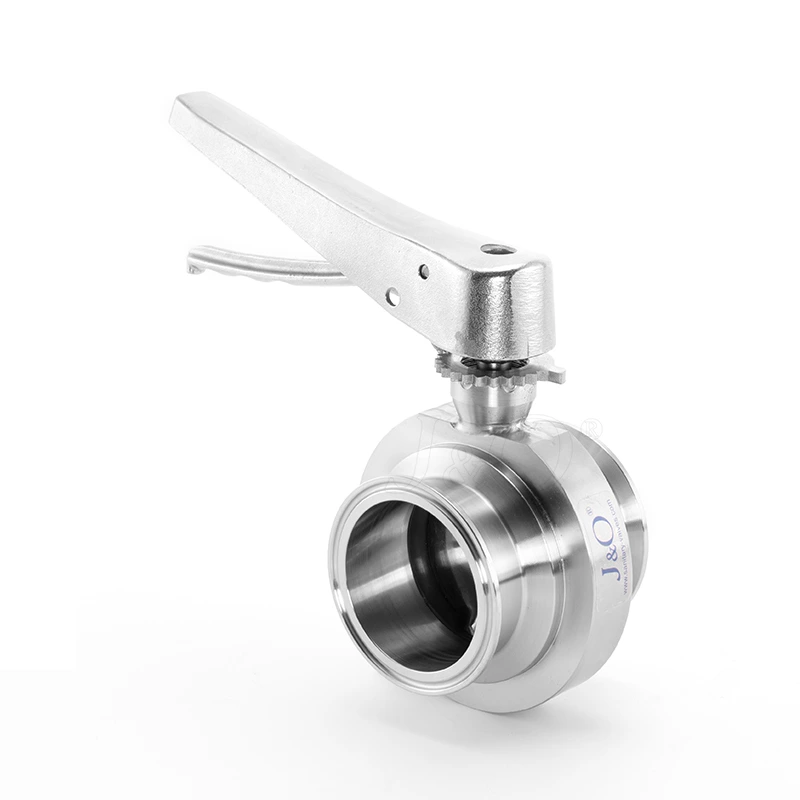

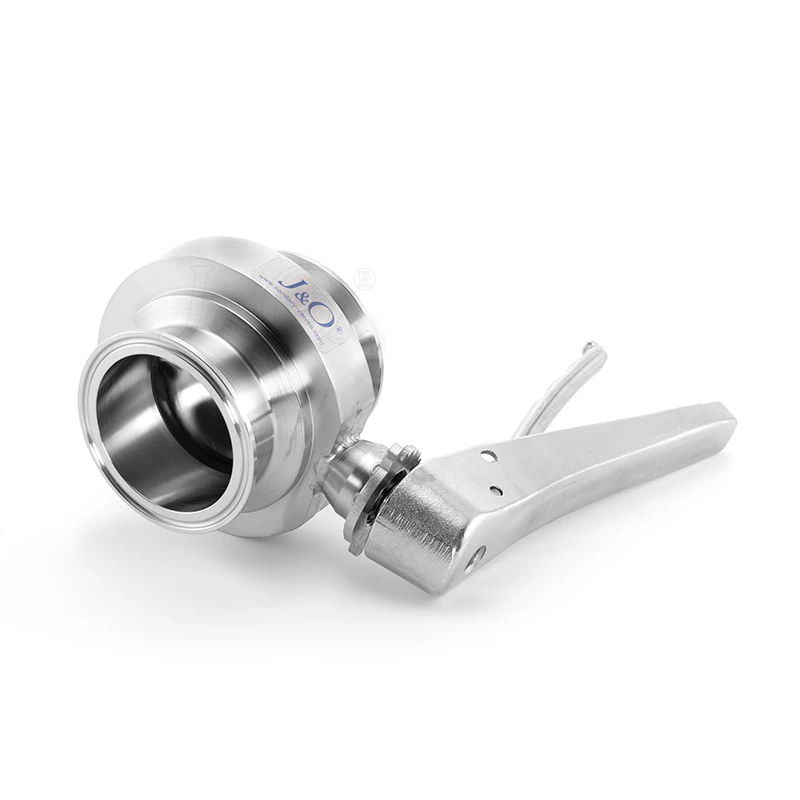

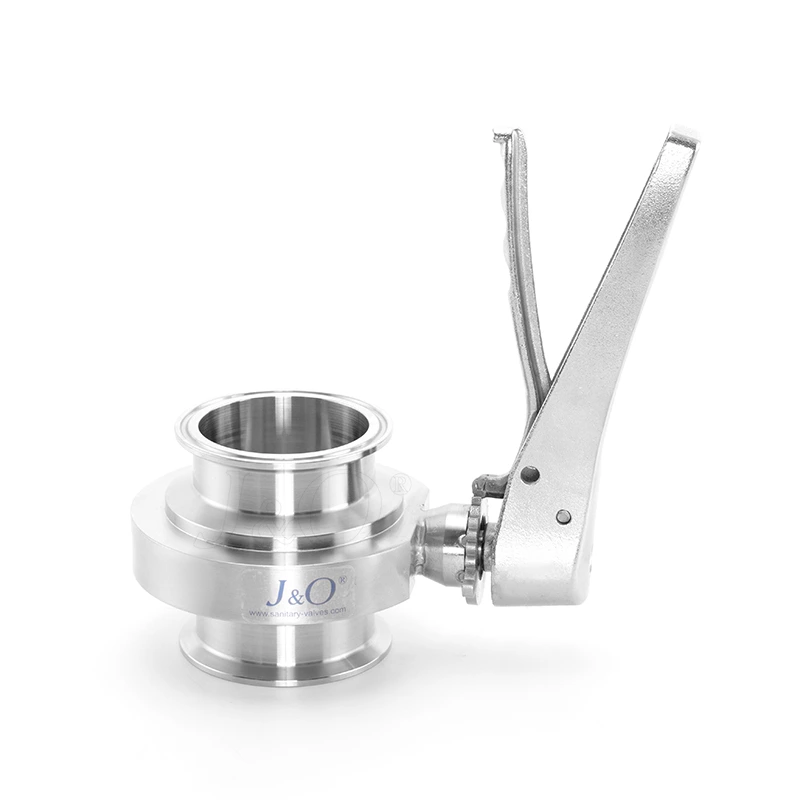

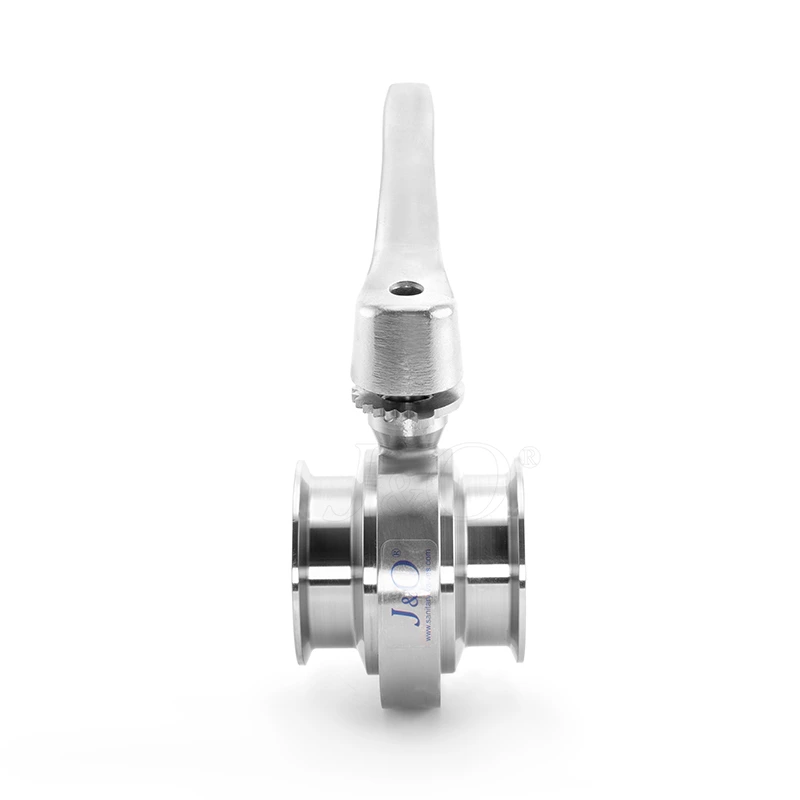

Data Center Chiller Cooling Water One Piece Leak Free Butterfly Valve
- Place of Origin:
- China
- Packing:
- Carton Case, Plywood Case
- Quantity:
- 10000PCS
- Payment:
- T/T, L/C
- Medium:
- Data Center Cooling Water
- Material:
- SS304, SS316L
- Connection:
- Tri-Clamp
- Specification:
- 1"-8"
- Pressure:
- 12Bar
- Temperature:
- -40 Degree to 120 Degree
- Gasket:
- Silicone, EPDM, Viton
Data Center Chiller Cooling Water One Piece Leak Free Butterfly Valve
- Leak-Free Performance – One Piece Design to ensure zero fluid loss
- High-Temperature & Corrosion Resistance – SS316L construction for long-term durability
- Quick & Secure Installation – Tri-Clamp connecton make quick install for pipe line
- The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
- All of the products have been 100% press tested before shipping.
- It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
- EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as Data Certer cooling, Energy stroage cooling, Liquid Cooling, food, dairy, beverage, meat processing, chemical, and many other industries.
Product Description
| Seal Material: | SEPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
| Max working pressure: | 10Bar |
| Max. Working Temperature: | -40 Degree |
| Availably size: | 1"-6", DN25-DN150 |
| Availably connection: | Clamp |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Manual |
| Control: | Sensor, C-TOP, C-top controller(AS-I) |
| Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
| Handle application: | stainless steel Gripper handle |
| Application scope: | Liquid Cooling, Data Ceter Cooling, Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc |
Product Parameter
