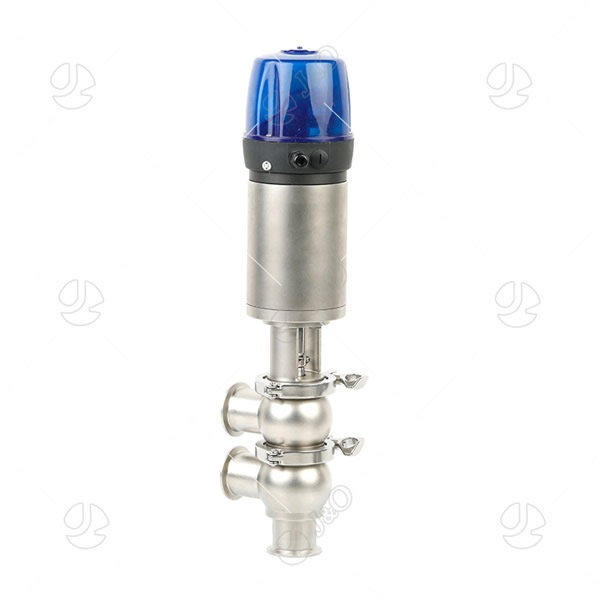

Sanitary Pneumatic Clamped Reversing Valve

Model:
DVQALL-C-11
Place of Origin:
Wenzhou, China
Packing:
Suitable Packing for Sea/Air Transport
Quantity:
1000 Piece/Pieces per Month
Payment:
T/T, L/C, Western Union
Medium:
Water, Oil
Material:
SS304/SS316L
Connection:
Clamped
Specification:
1 1/2"-4"
Gasket:
PTFE, EPDM, NBR
Shape:
LL Type
Type:
Pneumatic
Contact Now
Sanitary Pneumatic Clamped Reversing Valve
Pneumatic LL Type Divert Valve
Sanitary LL Type Divert Valve
Sanitary Divert Valve
Sanitary Stainless Steel Divert Valve
Sanitary Pneumatic Divert Valve
Pneumatic Divert Valve

Sanitary Pneumatic Clamped Reversing Valve

  • The series of valve are major let the medium reach the purpose of reversing or end stop, because the good sealablity and cleanability, they are extensively use to different sanitary industry areas.
  • The series of pneumatic cut-off reversing valve change the energy which process by compressed air to the mechanical energy, the mechanical energy can drive the valve rod axial moving, thus move the different location of seal elements, which can control the switch for inlet of pipeline, finally realise the purpose of medium reversing or stop.
  • The manual cut-off reversing valve series control by handle, also reach the purpose of medium reversing or stop at the end.

Product Description

Material quality:  AISI304, AISI304L, AISI316, AISI316
Size: 1 1/2"-4"
Standards:  DIN, SMS, ISO, IDF, RJT, 3A, etc
Connection end: threaded,welded,clamped
Types: L, T, LL, LT,TL,TT

Product Parameter

Sanitary Pneumatic Clamped Flow Valve Divert Valve Reversing Valve Parameter
