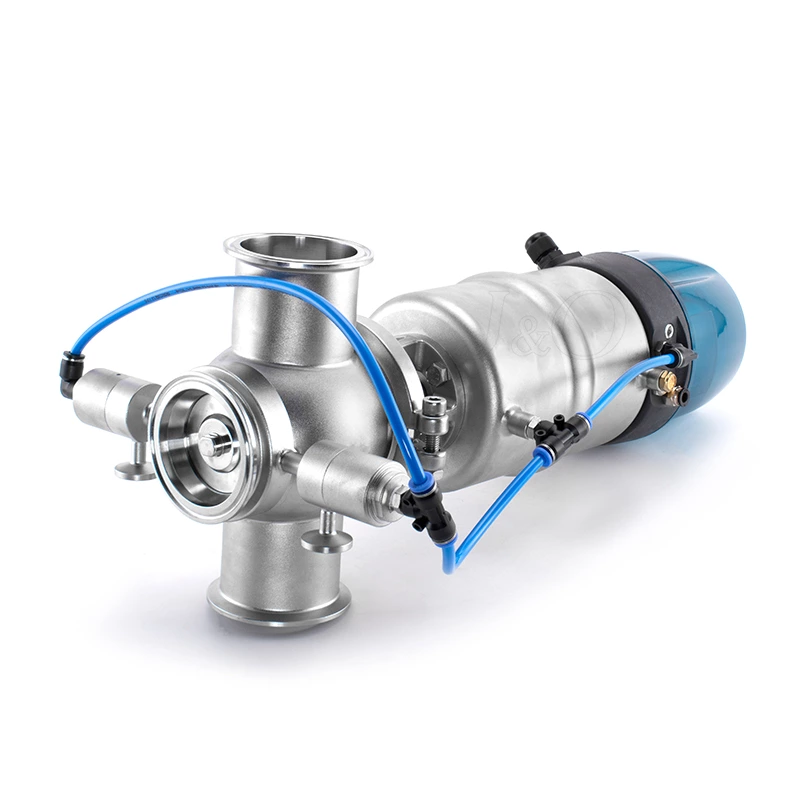

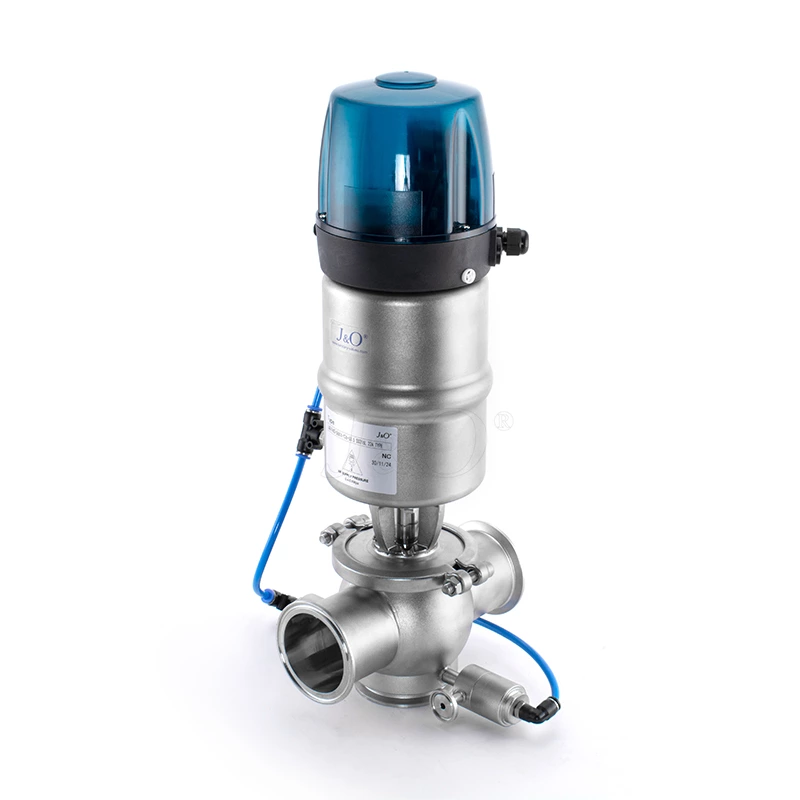

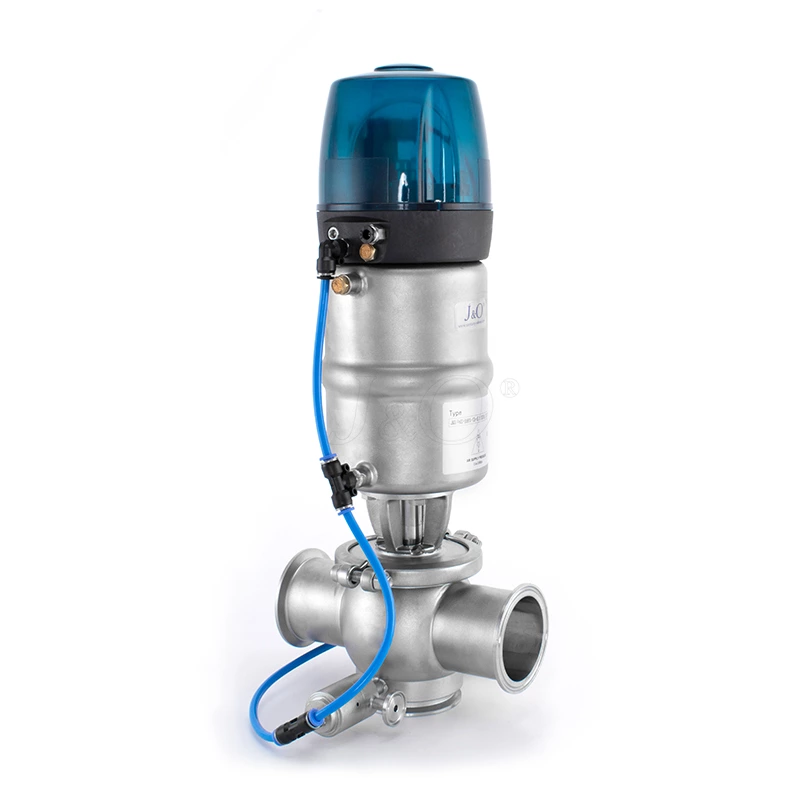

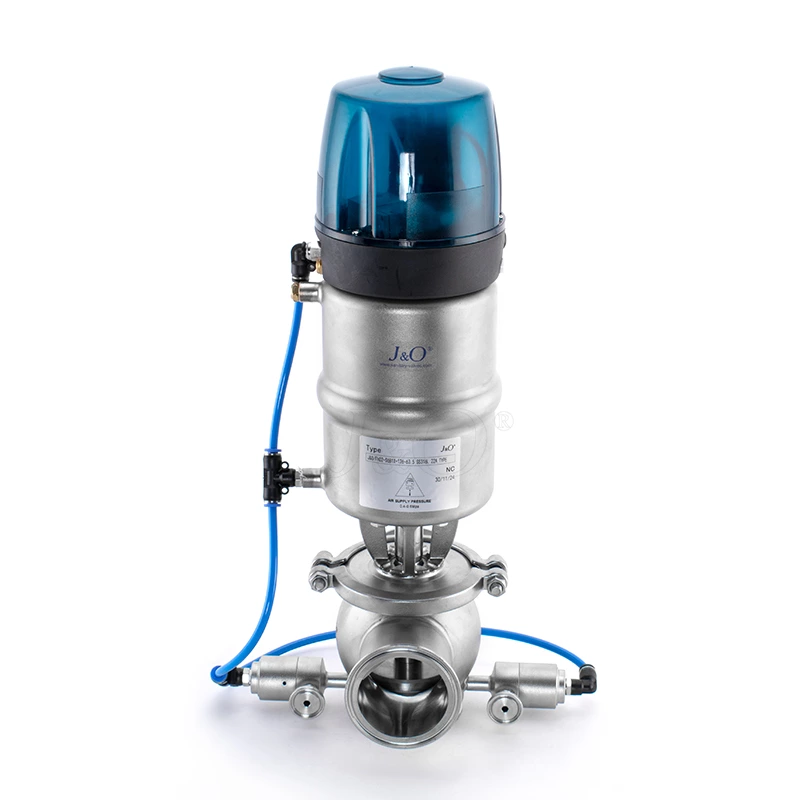

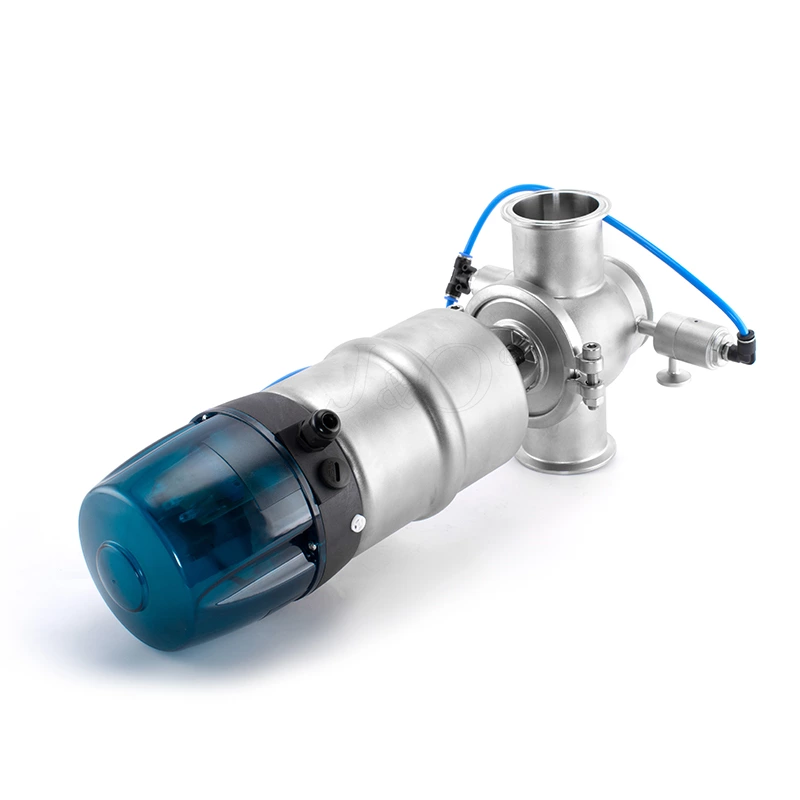

Pneumatic Sanitary Stainless Steel Cleaning Single Seat Clamped Mix Proof Valve

The valve is designed to meet the high sealing requirements of products. The double sealing design ensures the sealing of the product cut off, and is widely used in industries such as food, brewing, beverages, dairy products, toothpaste, cosmetics, biopharmaceuticals, etc.

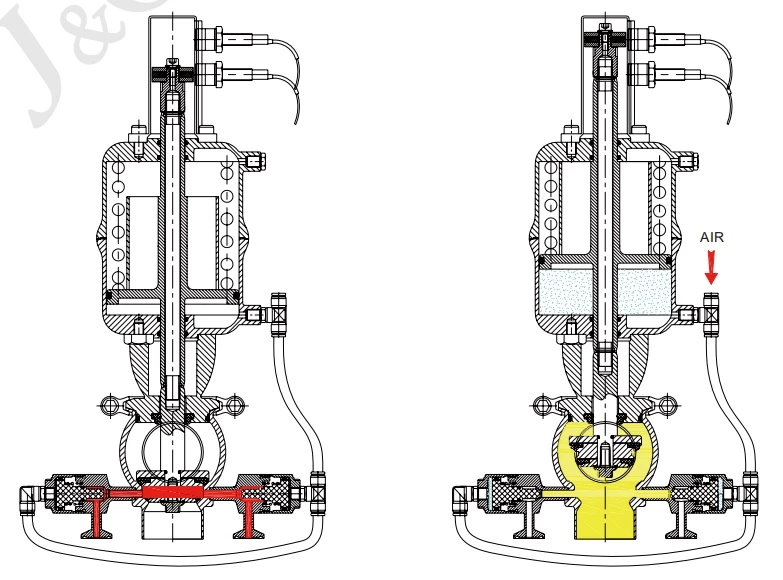

This valve is normally closed (NC) and is equipped with two small pneumatic valves that are in a normally open (NO) state and only needs to supply compressed air to the pneumatic head to synchronously close the two small valves. The main valve core is equipped with two independent seals, forming a leak detection and cleaning chamber between the two seals. Leaking products can flow out from the small valve outlets on both sides and the seals can be replaced in a timely manner. When performing CIP cleaning, the fluid flow is facing the square core of the valve core, which can comprehensively clean the main valve core (with a taper on the main valve core) and make the supplied CIP valve insensitive to water hammer effects. Mainly used for fluid cut-off in pipeline systems, applied in pipeline systems.

Product Description

Valve Body Material:	SS304 ,SS316L
Seal Material:	EPDM, SI, FPM
Max Working Pressure:	≤ 6bar
Working temperature:	-10 ℃ to 120 ℃
Size:	1.5"~ 4" DN40~DN100
Connection:	Thread,Weld,Clamp,flange
Supply compressed air:	4-8bar
Compressed air connection:	Air pipe connector G1/8"
Proximity switch:	6-36V DC 2 NPN or PNP (optional)
Input power supply	24V DC
