Stainless Steel GI Electric Wafer Type Flange Vacuum Butterfly Valve
- Place of Origin:
- China
- Packing:
- Carton Case, Plywood Case
- Payment:
- T/T, L/C, Paypal, Ali Pay
- Medium:
- Air
- Material:
- SS304, SS316L
- Connection:
- Flange
- Specification:
- DN25-DN400
Stainless Steel GI Electric Wafer Type Flange Vacuum Butterfly Valve
Introduction

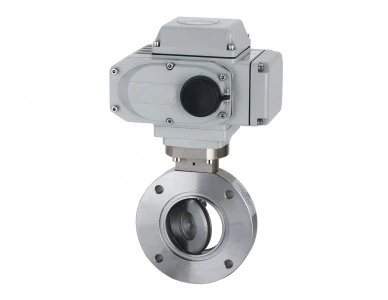

JO-BFE-F electric high-vacuum butterfly valve adopts a rotary electric, electronically adjustable valve drive device. Through the switch of an external power supply or an external input signal, the valve open/off or intermediate position control is realized, so as to achieve the purpose of connecting or cutting off the air flow in the vacuum pipeline.
The valve plate of the valve adopts a flange structure, which clamps the sealing ring of the valve plate, and has a fine-tuning sealing function.
The applicable working medium is air and non-corrosive gas.

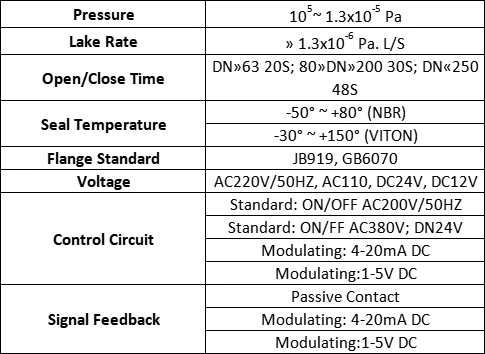

Specifications
Body: Carbon Steel /SS304
Bonnet: Carbon Steel /SS304
Stem: Carbon Steel /SS304
Seal: NBR OR VITON
