Sanitary Stainless Steel Constant Pressure Valve

Place of Origin:
Wenzhou, China
Suitable Packing for Sea/Air Transport
10000 PCS Per Year
T/T, L/C, Western Union
SS304, SS316L

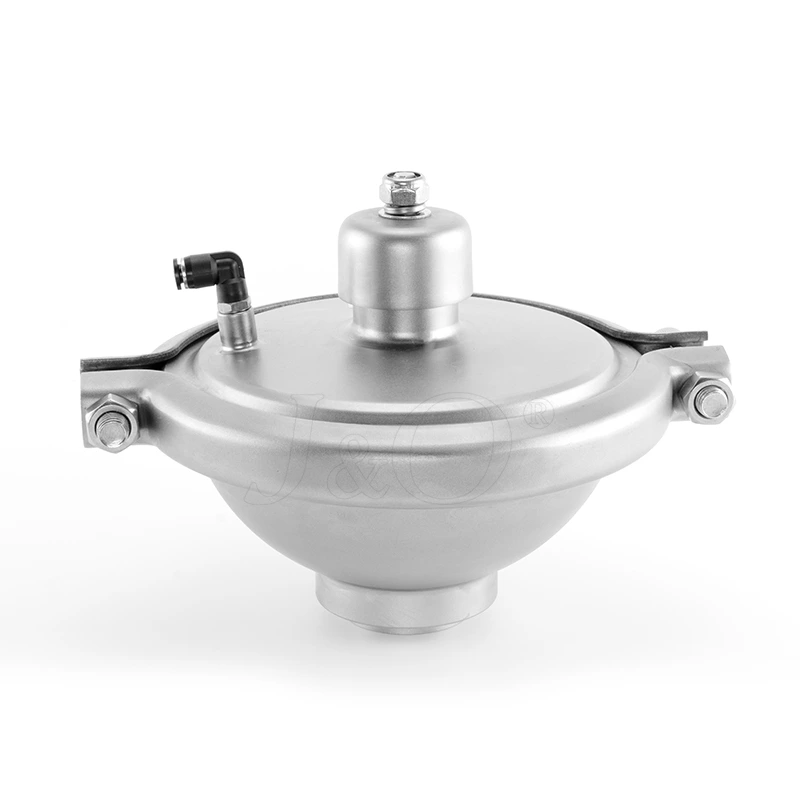

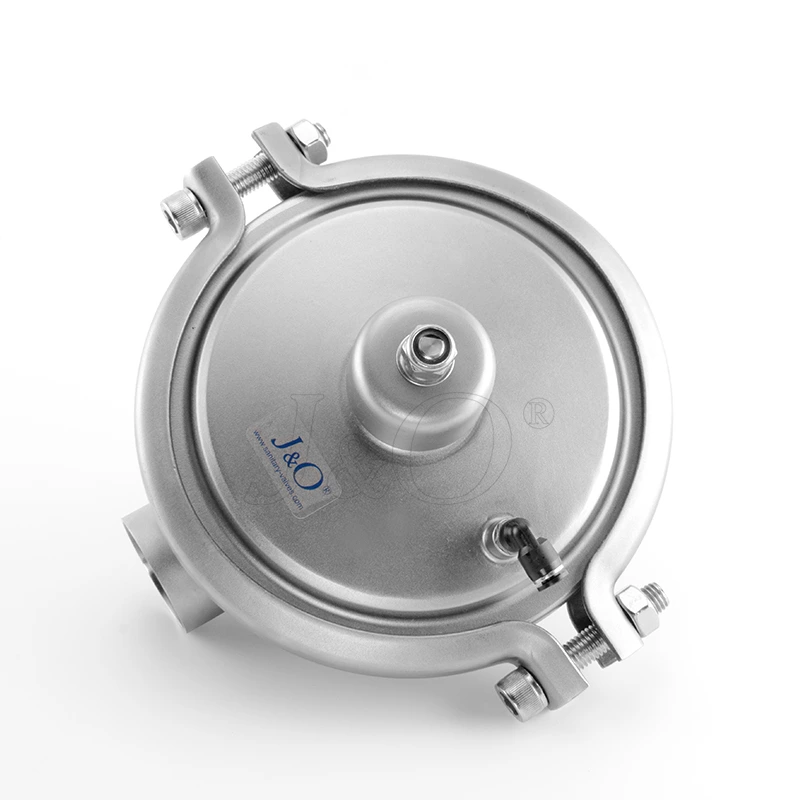

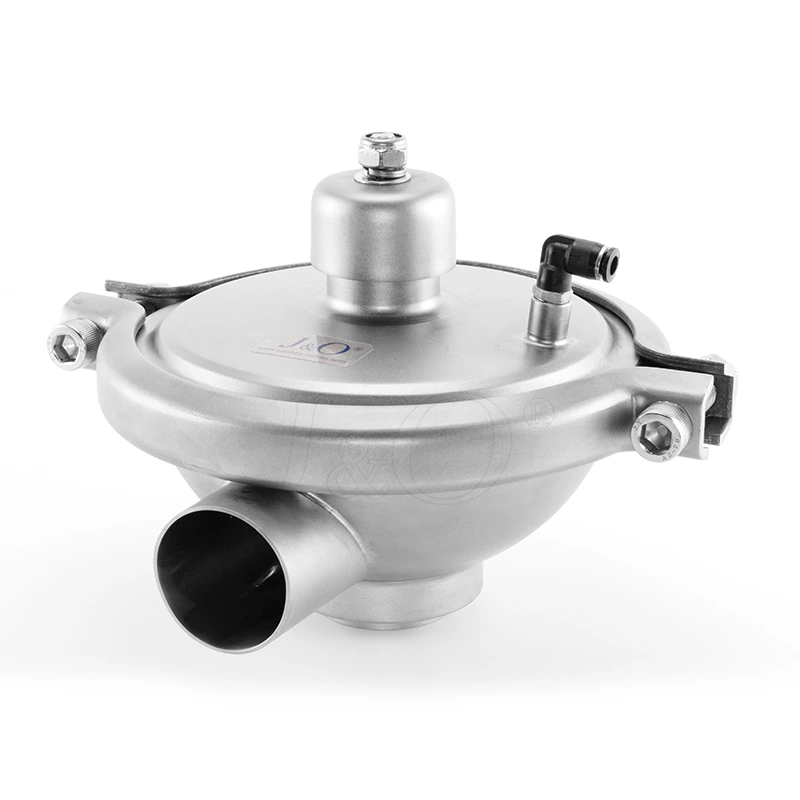

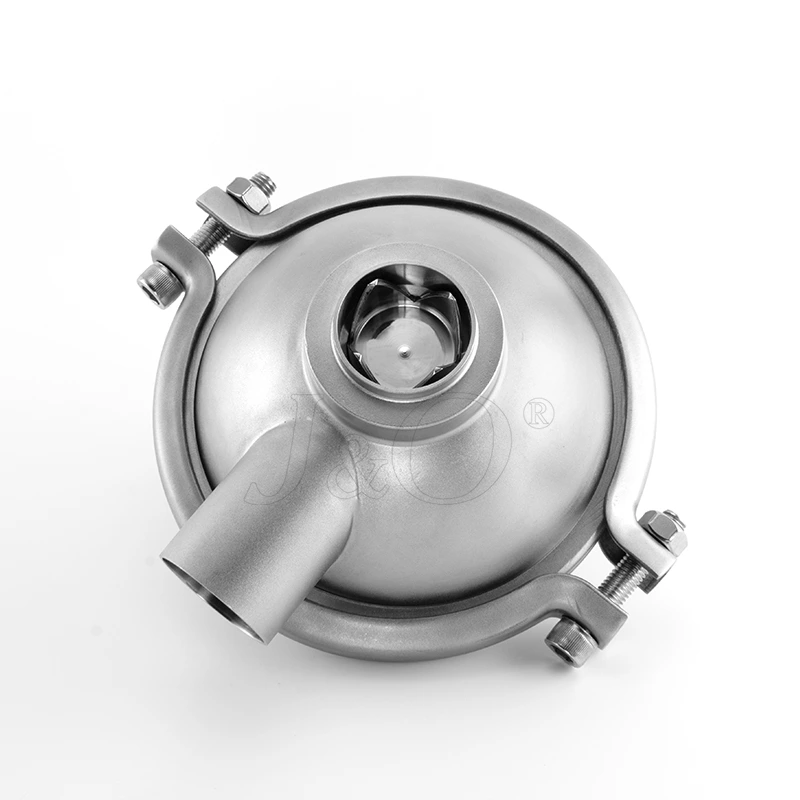

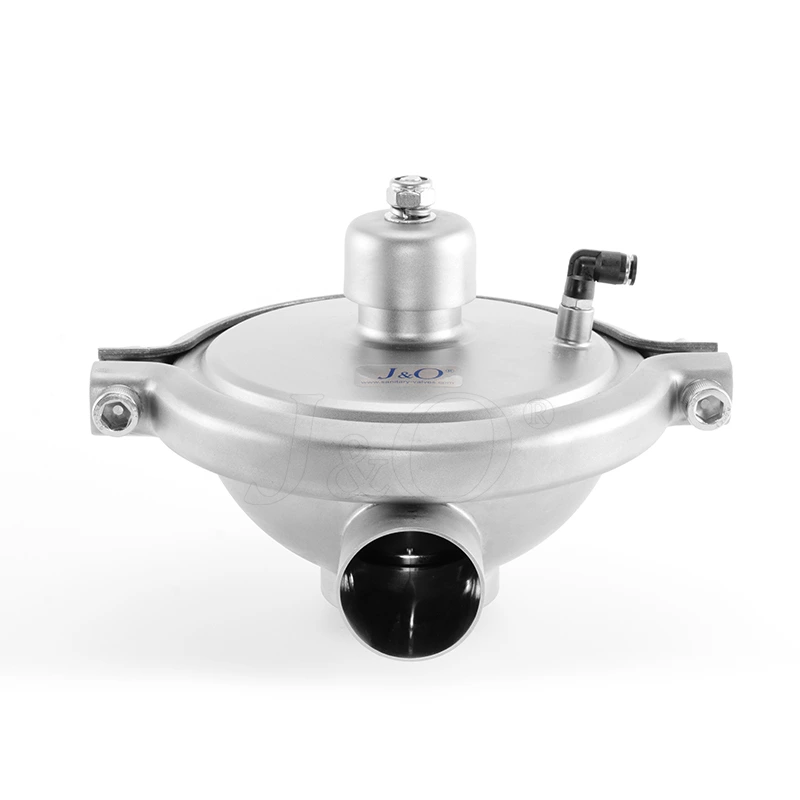

Sanitary Stainless Steel Constant Pressure Valve

  • Constant pressure regulating valve which in its outlet and inlet to ensure a stable pressure, so widely used in separators, heat exchangers, the back of canned systems and other equipments, as well as the relief valve.
  • Constant pressure regulating valve series are remotely operated by compressed air, the series of valve operation does not depend on the pipeline transportatjion of products of any sensor, requiring only a compressed air pressure regulator for the devices and a pressure guage on the product pipelines monitor the pressure. A diaphragm/stem system san transport the product of the rapid reponse to any pressure changer and change stem position so theat continue to mantain pre-set pressure valve. When the delivery pressure of the product increases, the valve opens, on thecontrary, the valve closed.

Product Description

Pressure: 0-8bar
Metel Material: SS304, SS316L
Up Diaphragm: NBR
Down Diphragm: PTFE+EPDM
Connection: Welding

Product Parameter

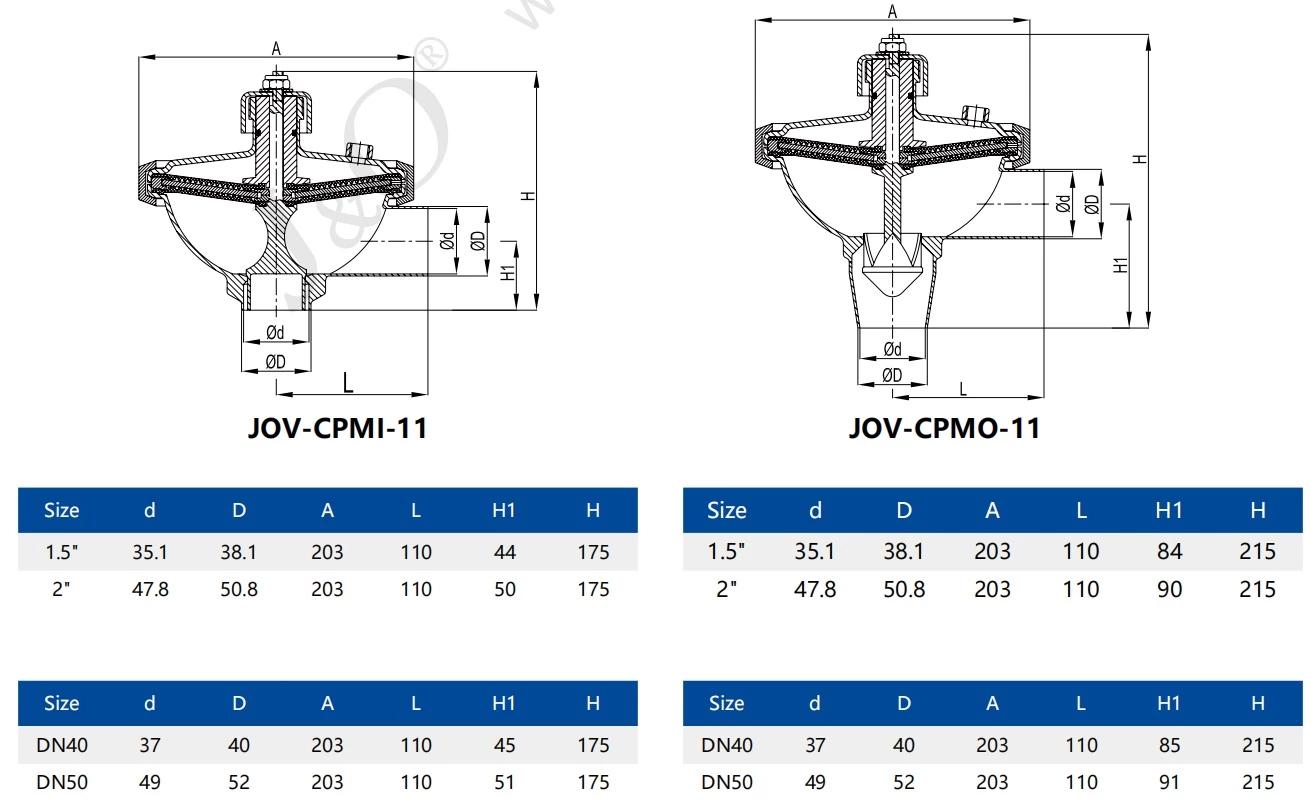

Constant Pressure Valve Parameter
