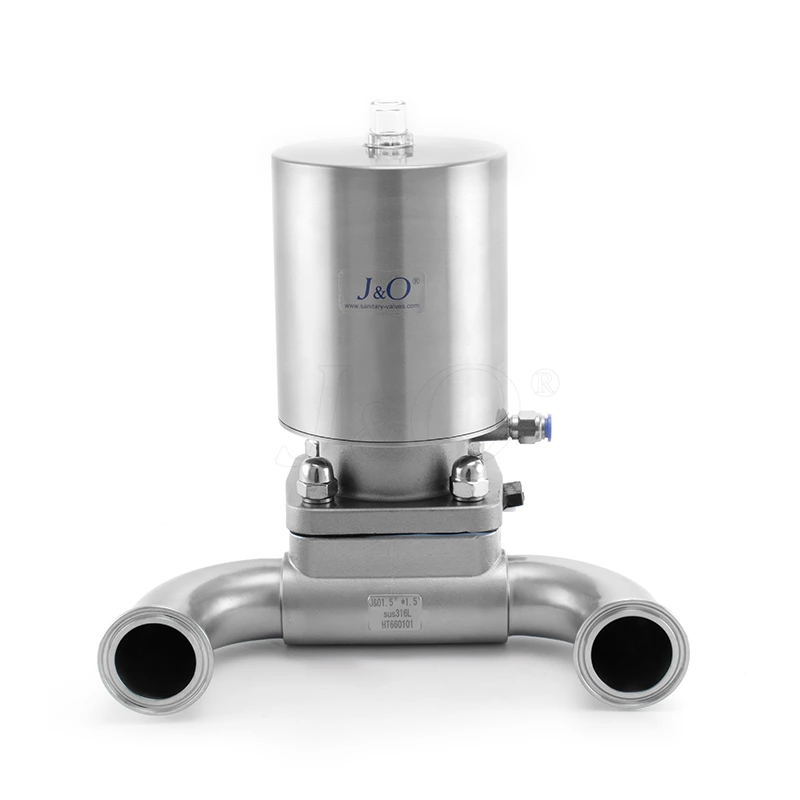

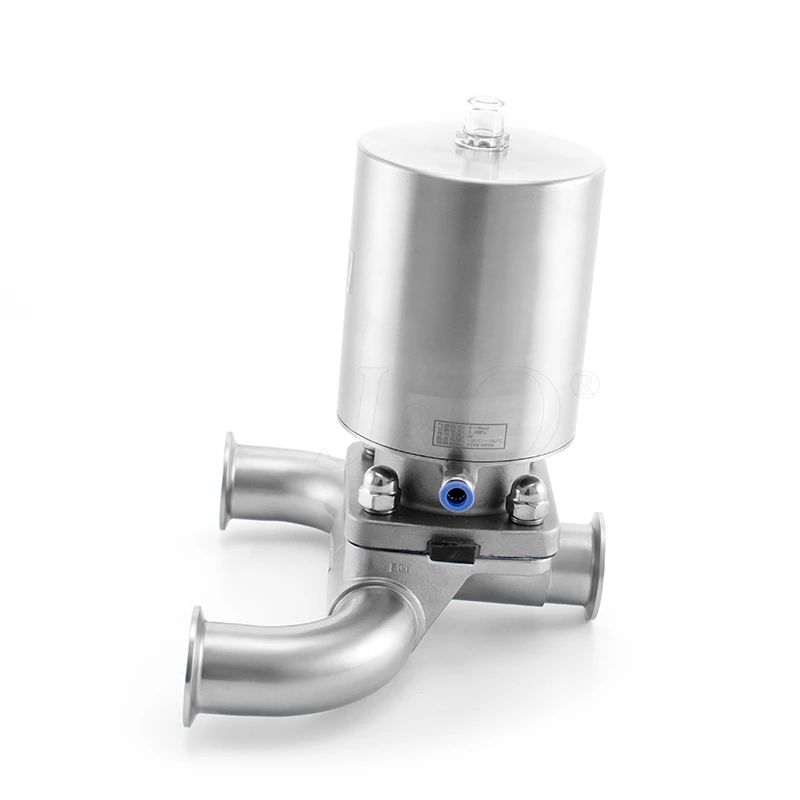

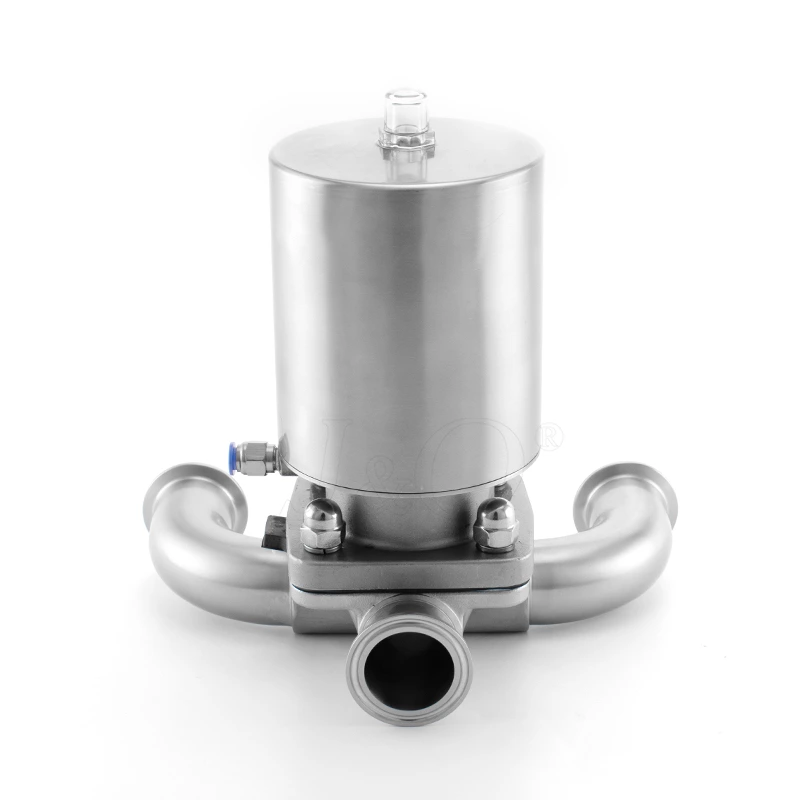

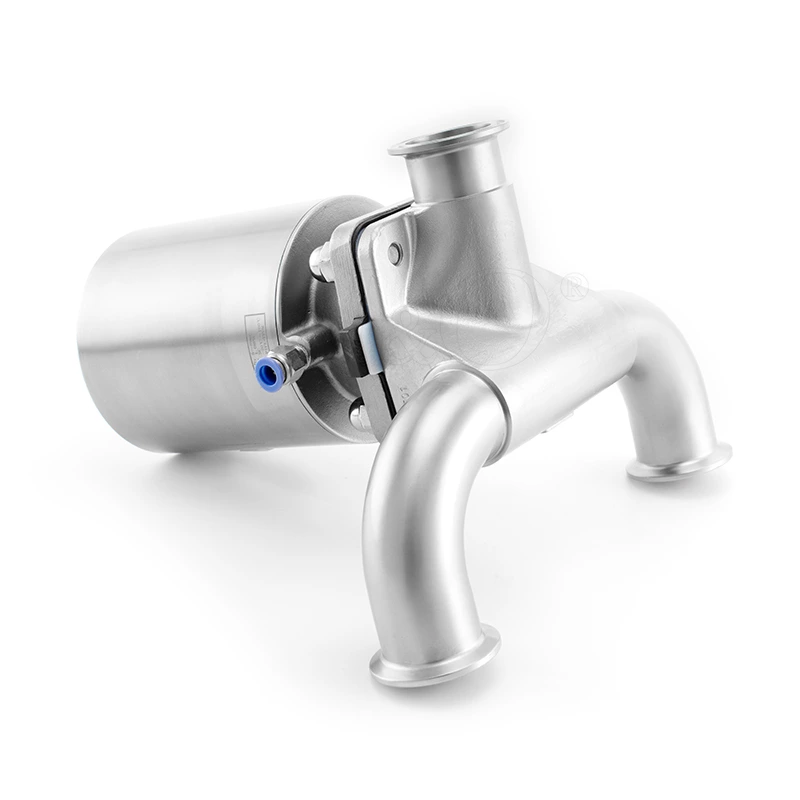

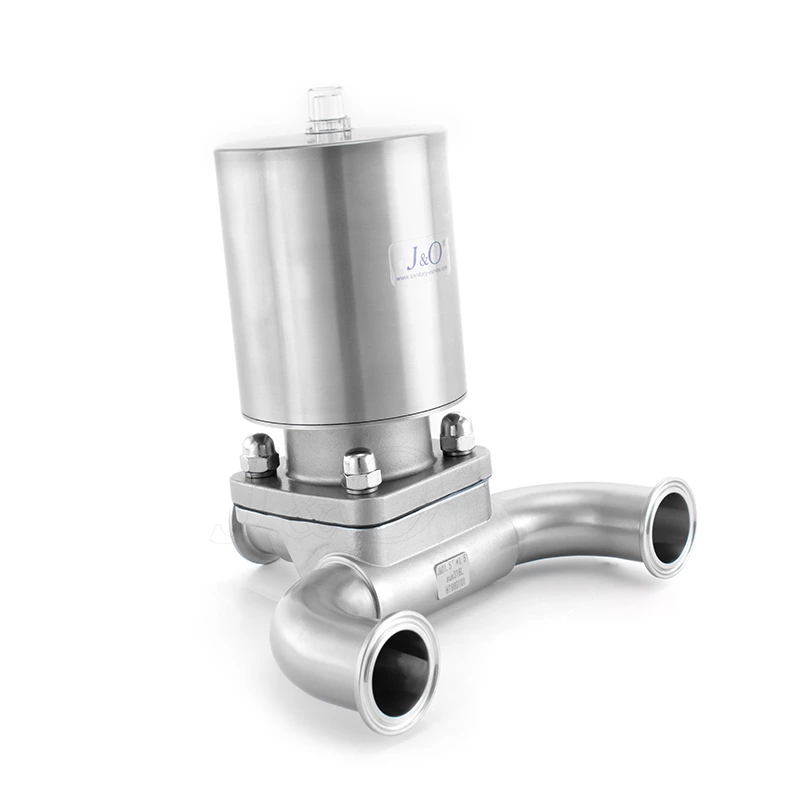

Sanitary Stainless Steel Pneumatic U Type Clamp Diaphragm Valve

Place of Origin:
Wenzhou, China
Packing:
Suitable Packing for Sea/Air Transport
Quantity:
1000 Piece/Pieces per Month
Payment:
T/T, L/C, Western Union
Medium:
Water
Material:
SS316L
Connection:
Clamped
Specification:
DN15-DN80
Gasket:
EPDM+PTFE
Shape:
U Type
Hygienic Pneumatic U Type Clamp Diaphragm Valve With SS Actuator
Hygienic Pneumatic U Type Clamp Diaphragm Valve With SS Actuator Hygienic Stainless Steel U Type Clamp Diaphragm Valve With SS Pneumatic Actuator Hygienic Pneumatic U Type Clamp Diaphragm Valve Hygienic Stainless Steel Pneumatic U Type Clamp Diaphragm Valve Hygienic Stainless Steel Pneumatic U Type Tri Clamp Diaphragm Valve Stainless Steel Hygienic Pneumatic U Type Clamp Diaphragm Valve

Sanitary Stainless Steel U Type Clamp Diaphragm Valve

  • Our Sanitary Three Ways Diaphragm Valve including Sanitary Welded 3-Way Diaphragm Valve, Hygienic Tri Clamp Three Way Diaphragm Valve, Sanitary Manual Three Way Diaphragm Valve, Hygienic Pneumatic Three Way Diaphragm Valve.
  • Diaphragm valves, manually or pneumatically operated, and specifically designed for use on hygienic and aseptic processes in the pharmaceutical industries. The valve is excellent for flow control as well as for open/close duties. The diaphragm valves are better in feature of flow in comparison with other valves. It is easier to clean up and better to process the substance with particles. The phenomenon of air pocket is rare during application of flow control.
  • With CNC precision machining, ensure the sealing surface and fir the diaphragm valve chamber solitary degrees, reducing the diaphragm.
  • Valve chamber surface finish can be mechanical or electrolytic polishing according to customer requirements, polishing face smooth reach 0.25um.

Product Description

Material quality: AISI304, AISI316L
Standard: 3A/DIN/SMS/ISO/IDF
Flux domination of pipeline: DN10-DN50&3/4"-2", applied to the stainless steel pipeline system
Working principle: Remote-controlled operation by the driving gear or manual operation by the handle
Three drive forms: Normally closed, normally opened and opened & closed by two air flues separately.
Medium: Beer, Dairy, Beverage, Pharmacy

Product Parameter(Size as Manual Type)

U Type Three Way Clamp Diaphragm Valve Parameter
