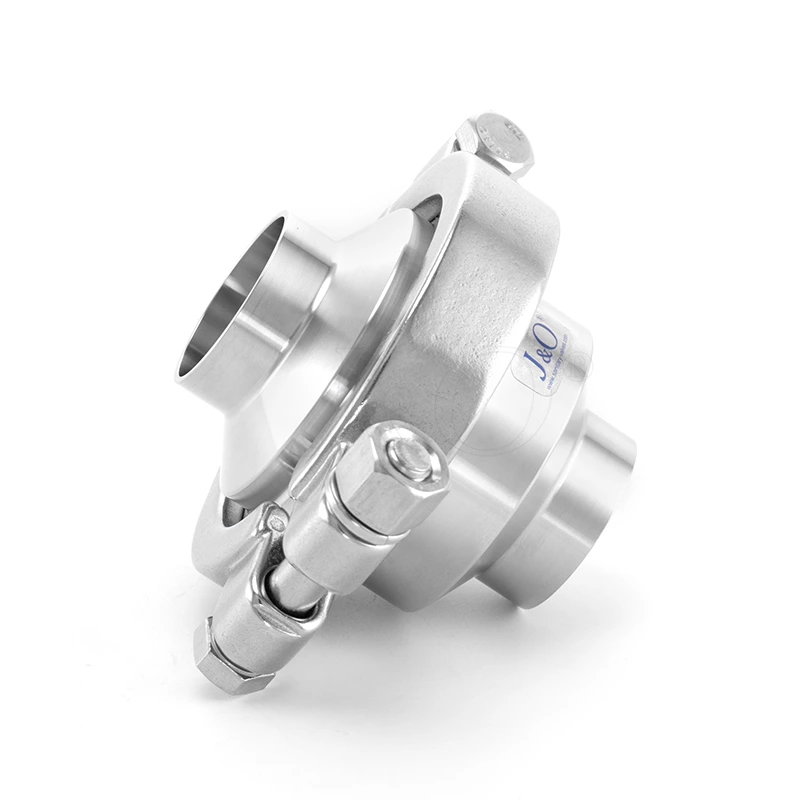

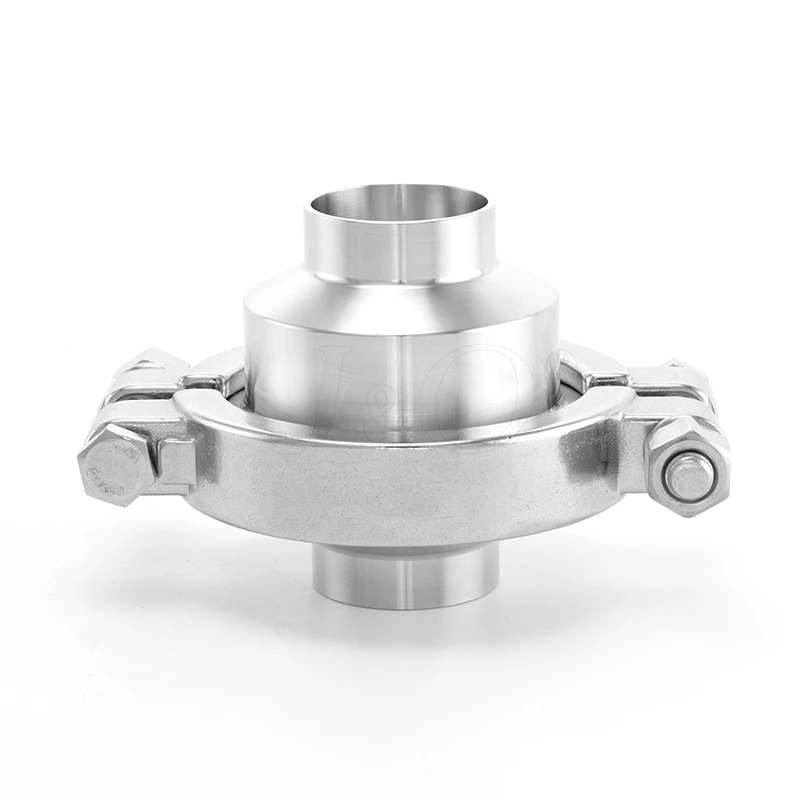

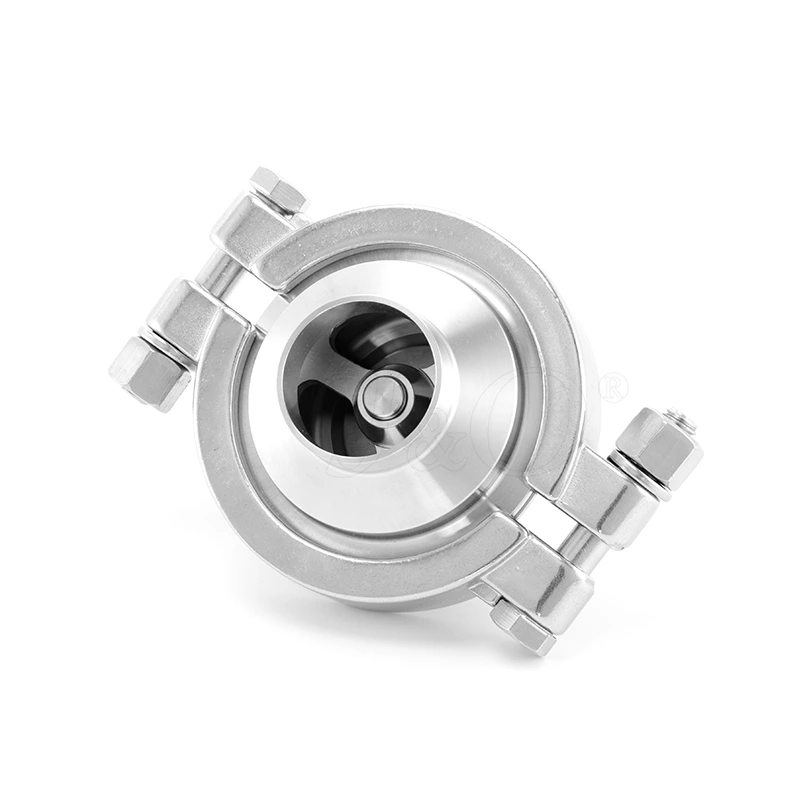

Sanitary Stainless Steel Butt Weld Check Valve

Place of Origin:
Wenzhou, China
Packing:
Suitable Packing for Sea/Air Transport
Quantity:
100000 PCS Per Year
Payment:
T/T, L/C, Western Union
Medium:
Water, Oil
Material:
SS304/SS316L
Connection:
Welding
Specification:
1"-4"
Gasket:
EPDM/SILICON/NBR
Sanitary Stainless Steel Butt Weld Welding Check Valve With High Pressure Clamp
Sanitary Stainless Steel Butt Weld Welding Check Valve With High Pressure Clamp Sanitary Stainless Steel Butt Weld Check Valve With High Pressure Clamp Sanitary Stainless Steel Welding Check Valve With High Pressure Clamp Sanitary Butt Weld Welding Check Valve With High Pressure Clamp Sanitary Butt Weld Check Valve With High Pressure Clamp

Sanitary Stainless Steel Butt Weld Check Valve

  • Our Sanitary Check Valve including Sanitary Tri Clover Check Valve, Hygienic Welding Check Valve, Sanitary Male Check Valve, Sanitary Union Type Check Valve, Hygienic Flanged Type Check Valve.
  • Check valve can prevent the fluid from flowing back and ensures that it flows in only one direction.
  • It can be used to prevent the less of prime of the pump and to avoid pipe-hammering.
  • It is used in the food-processing, beverage, wine-making, oil-making, cosmetics, pharmaceutical and chemical industries.
  • The valve opens when the pressure of the fluid exceeds the pressure exerted by the pump spring.
  •  When the two pressures are equalized, the valve closes. A stronger counter-pressure allows the valve to close.

Product Description

Product Name:  Sanitary Check Valve
 Material:  SS304 or SS316L
 Standard:  3A, SMS, DIN, RJT, IDF
 Size:  19mm - 200mm  or DN15-DN100
 Connection Way:  Weld
 Seal Material:  Silicone, EPDM, Viton, NBR
 Surface Finishing:  Ra≤0.8
 Working Temperature:  -10 degree to +120 degree (EPDM)
 Opening Pressure:  0.3 Bar (DN-25), 0.2 Bar (DN-32/40),0.1Bar(DN-50/100)
Packing Details: within carton box or plywood case
Applied Industries:  Dairy, Cosmetic, Pharmaceutical, Food and Beverage Industries


Product Parameter

Din Weld Check Valve Parameter
