Santiary Stainless Steel Pneumatic Actuator Ball Valve

Place of Origin:
Wenzhou China
Packing:
Suitable Packing For Sea/Air Transport
Quantity:
1000000 PCS Per Year
Payment:
T/T, L/C, Western Union
Medium:
Water, Oil
Material:
SS304/SS316L
Connection:
Welding,Thread,Clamped
Specification:
1"-4"
Pressure:
0-10Bar
Temperature:
-20°~120°
Gasket:
EPDM/SILICON/PTFE

Santiary Stainless Steel Pneumatic Actuator Ball Valve

  • We can supply Sanitary Pneumatic Welding Ball Valve, Hygienic Pneumatic Male Thread Ball Valve, Hygienic Tri-Clamp Pneumatic Ball Valve.
  • The Ball valve body and disk are all made from full CNC machined, high grade level polish.
  • All of the products have been 100% press tested before shipping.
  • It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
  • EPDM, Silicone and  PTFE seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.

Product Description

Product Name: Santiary Stainless Steel Pneumatic Actuator Ball Valve
Valve Body Material:  1.4404/1.4301, SS304/SS316L
Seal Material: PTFE
Mex working pressure: 20Bar
Max. Working Temperature: 120 degree C
Availably  size: DN10-DN150,3/4"-4"
Availably connection:  weld,thread,clamp
Availably standard: 3A/DIN/SMS/RJT/ISO/IDF
Operated: Pneumatic
Control: Sensor, C-TOP, C-top controller(AS-I)
Certificate:  ISO, PED/97/23/EC, FDA.177.2600
Handle application:  stainless steel pull handle
Application scope:  Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc

Product Parameter

Santiary Stainless Steel Pneumatic Actuator Ball Valve

Product Pictures

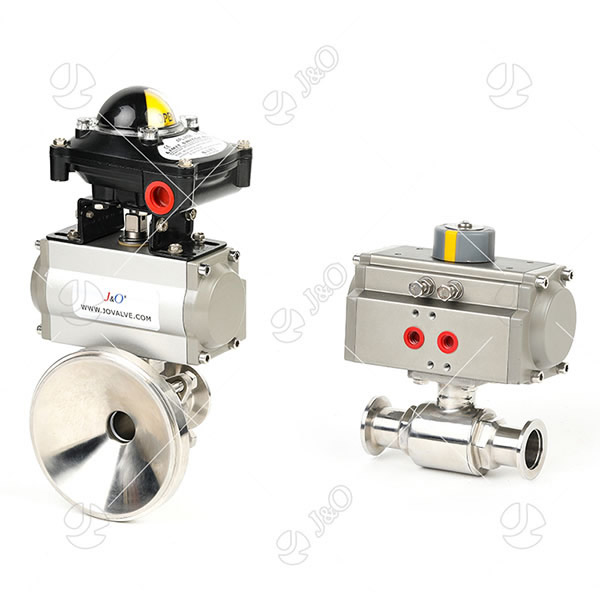

Santiary Stainless Steel Pneumatic Actuator Ball Valve
