Hygienic Encapsulated Sanitary Stainless Steel Tri-Clamp 3-Way Ball Valve

Place of Origin:
Wenzhou, China
Packing:
Suitable Packing for Sea/Air Transport
Quantity:
10000 PCS Per Year
Payment:
T/T, L/C, Western Union
Medium:
Water, Oil
Material:
SS304/SS316L
Connection:
Clamped
Specification:
1/2"-4"
Pressure:
0-10Bar
Temperature:
-20°~120°
Gasket:
PTFE
Shape:
Square
Type:
Three Ways
Sanitary Stainless Steel Square Tri Clamp Three Way Ball Valve
Sanitary Stainless Steel Square Tri Clamp Three Way Ball Valve Sanitary Stainless Steel Square Clamped Three Way Ball Valve Sanitary Stainless Steel Square Tri Clamp 3 Way Ball Valve Sanitary Stainless Steel Square Tri Clamp Clamped Three Way Ball Valve

Hygienic Encapsulated Sanitary Stainless Steel Tri-Clamp 3-Way Ball Valve

  • We manufacture Sanitary T Port Ball Valve, Hygienic L Port Ball Valve, Sanitary Cavity Filled Three Way Ball Valve, Sanitary Butt-weld 3 Way Ball Valve, Hygienic Male Thread Three Ways Ball Valve, Hygienic Tri-Clamp 3 Ways Ball Valve, Hygienic Pneumatic 3 Way Ball Valve, Sanitary Electric Actuator 3 Way Ball Valve.
  • Precision Investment Cast Body, Belleville Washer Design for Automatic Compression of Stem Sealing, Available in T-Port or L-Port, Available in Low Carton Steel 316L or Stainless Steel 316, Contact Surface of End Cap Polished, ISO5211 Direct Mount.

Product Description

Product Name: Hygienic Encapsulated Sanitary Stainless Steel Tri-Clamp 3-Way Ball Valve
Valve Body Material: SS304/SS316L
Seal Material: EPDM (standard)/SILICON/NBR
Mex working pressure: 20Bar
Max. Working Temperature: 120 degree C
Availably size: 1"-6", DN25-DN150
Availably connection: Clamped
Availably standard: 3A/DIN/SMS/RJT/ISO/IDF
Operated: Manual
Certificate: ISO, PED/97/23/EC, FDA.177.2600

Product Parameter

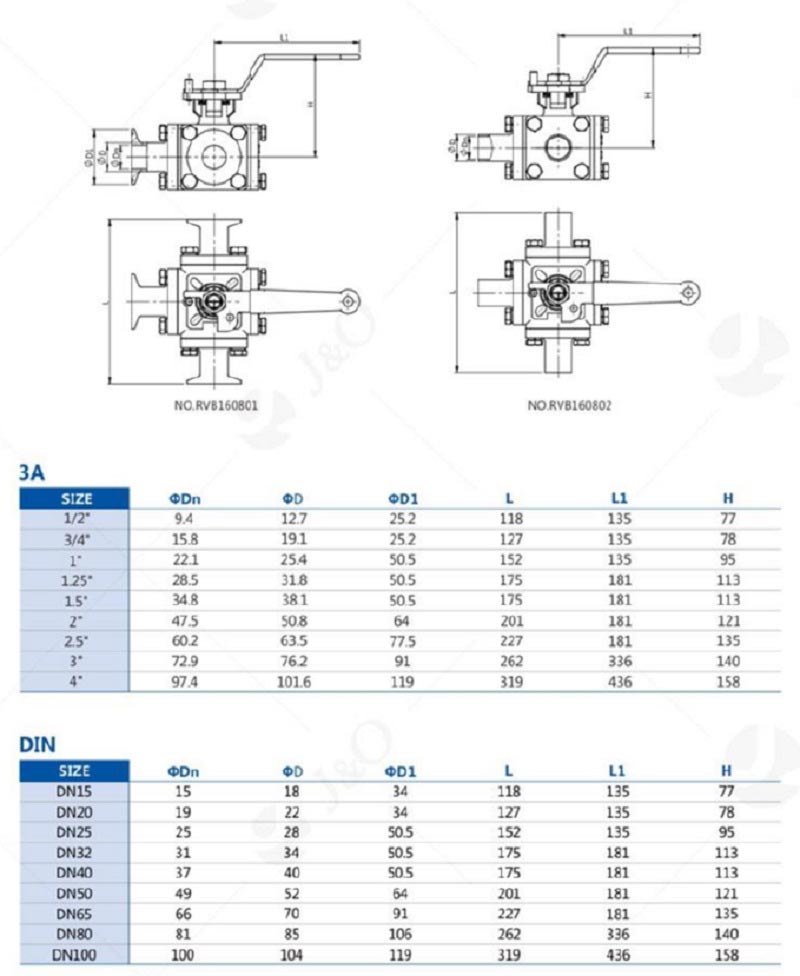

3 Ways Ball Valve parameter
