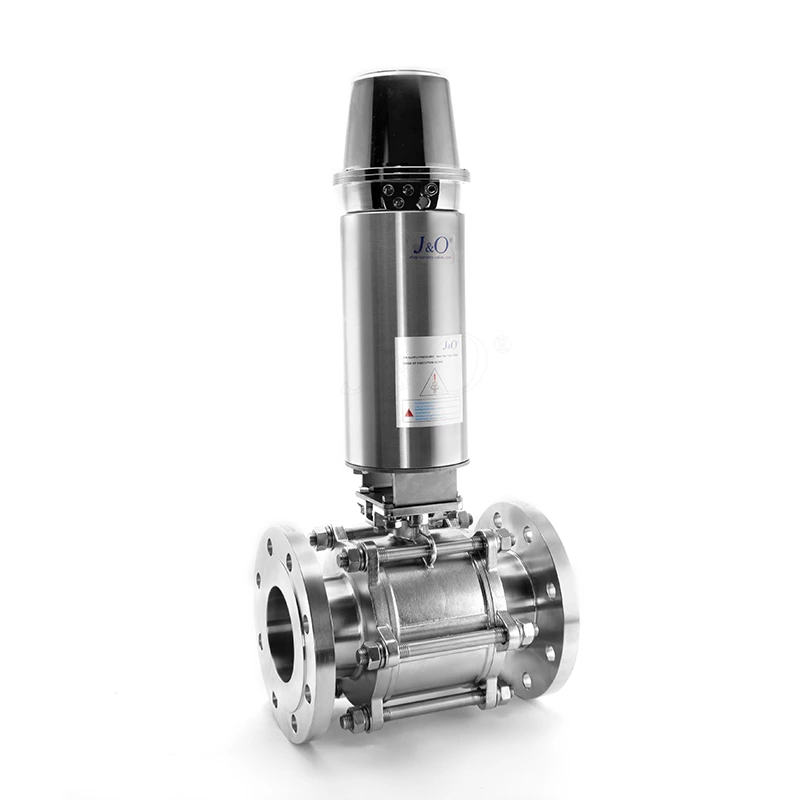

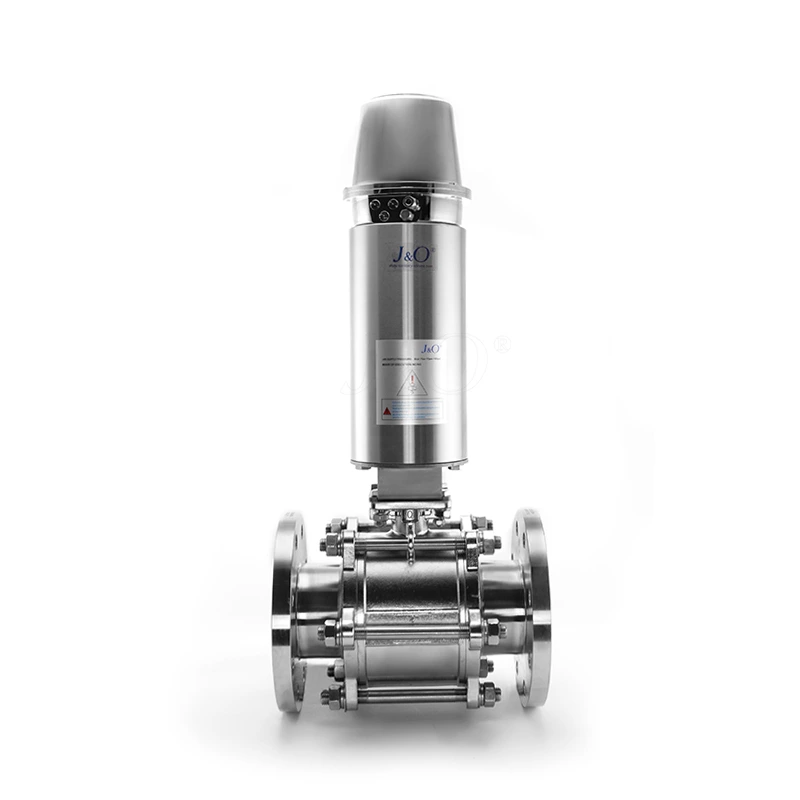

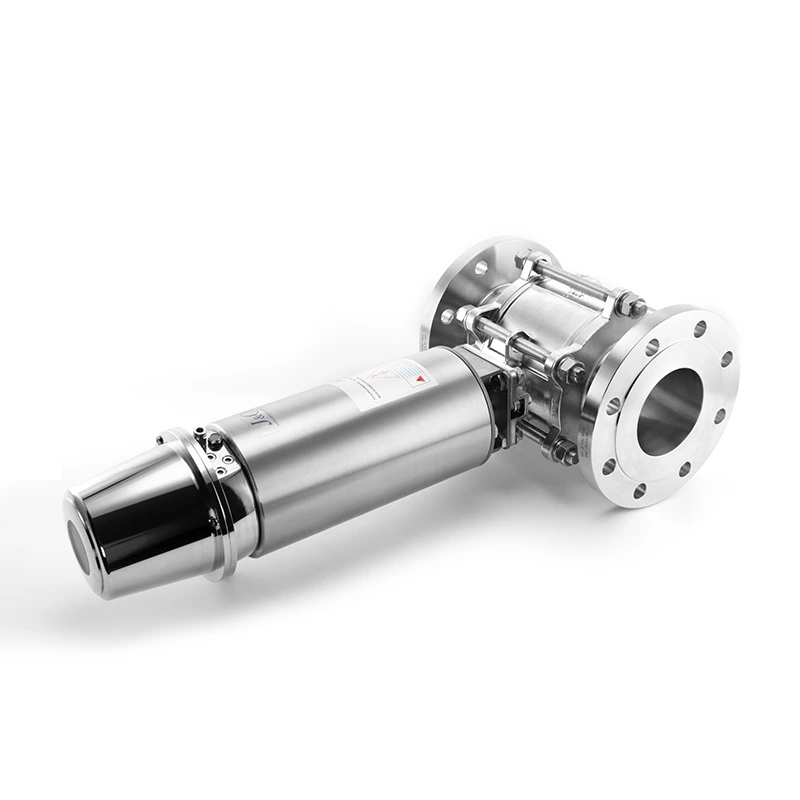

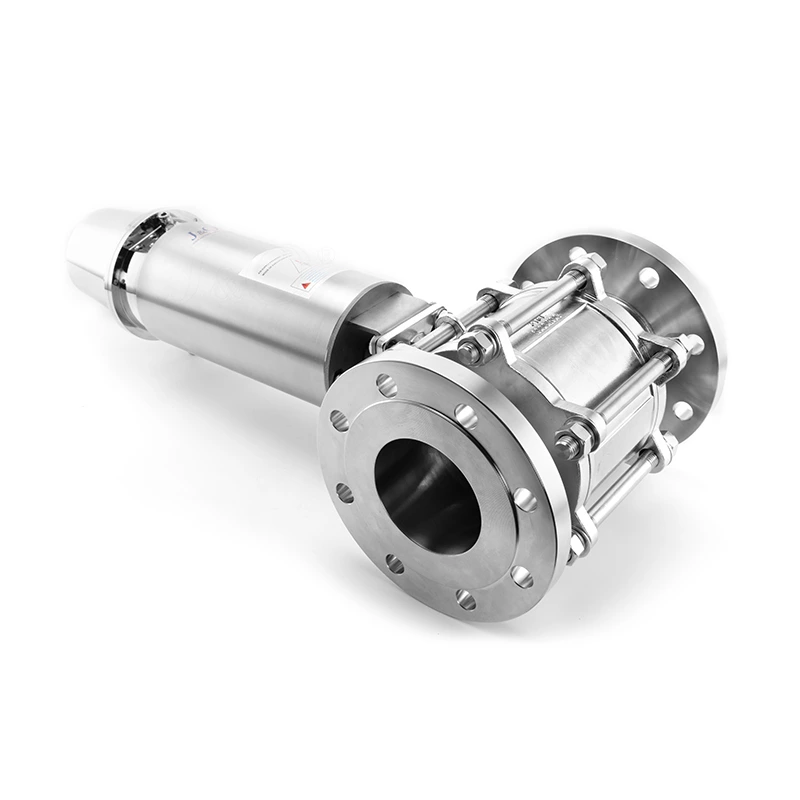

Hygienic 3PC Flanged Ball Valve With Vertical Stainless Steel Pneumatic Actuator
- Place of Origin:
- Wenzhou, China
- Packing:
- Suitable Packing for Sea/Air Transport
- Payment:
- T/T, L/C, Paypal, Alipay
- Material:
- SS304/SS316L
- Pressure:
- 0-10Bar
Hygienic 3PC Flanged Ball Valve With Vertical Stainless Steel Pneumatic Actuator
- If the environment is corrosive to aluminum pneumatic actuators, stainless steel pneumatic actuators can be used.
- Hygienic 3PCS ball valve with ISO direct mounting pad is designed for food biological, pharmaceutics or similar industries. The cavity filled seat option will help not to remain the media in the body cavity to keep from spoiling or mixing. Cavity filler seats will also help to clean the valve port easily.
- The options on end types can be T-Clamp, Tube weld end, Extended tube weld end, flanged end, thread end. Different material of soft kits will be applicable for different working circumstance.
Product Description
| Product Name: | Hygienic Stainless Steel 3PCS Flanged Ball Valve |
| Valve Body Material: | SS304/SS316L |
| Seal Material: | PTFE |
| Mex working pressure: | 10Bar |
| Max. Working Temperature: | 180 degree C |
| Availably size: | 1"-4", DN25-DN100 |
| Availably connection: | Flange, Clamp, Weld, Thread |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Pneumatic |
| Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
| Application scope: | Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc |
