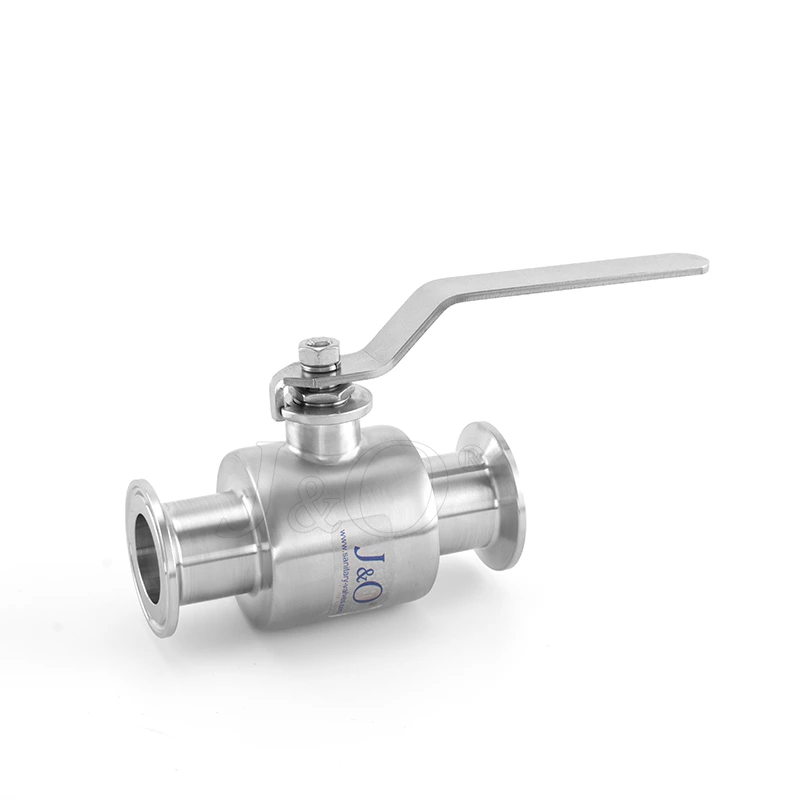

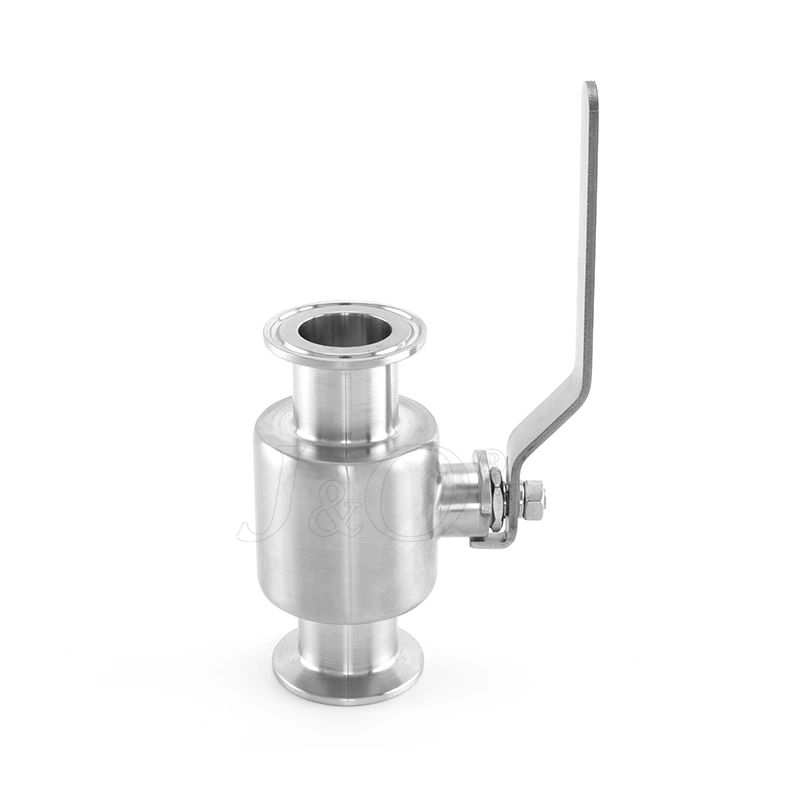

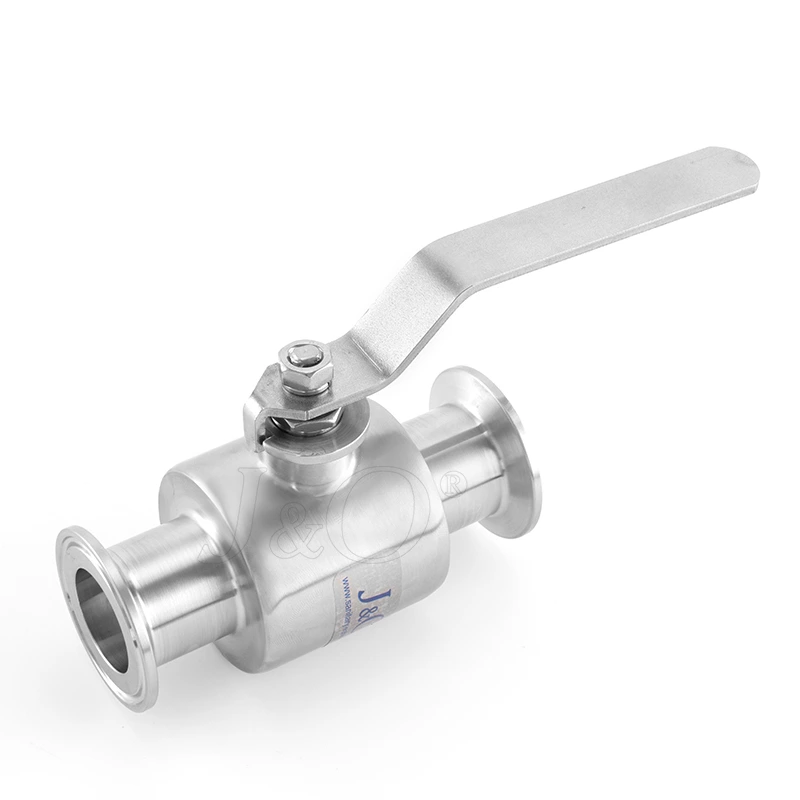

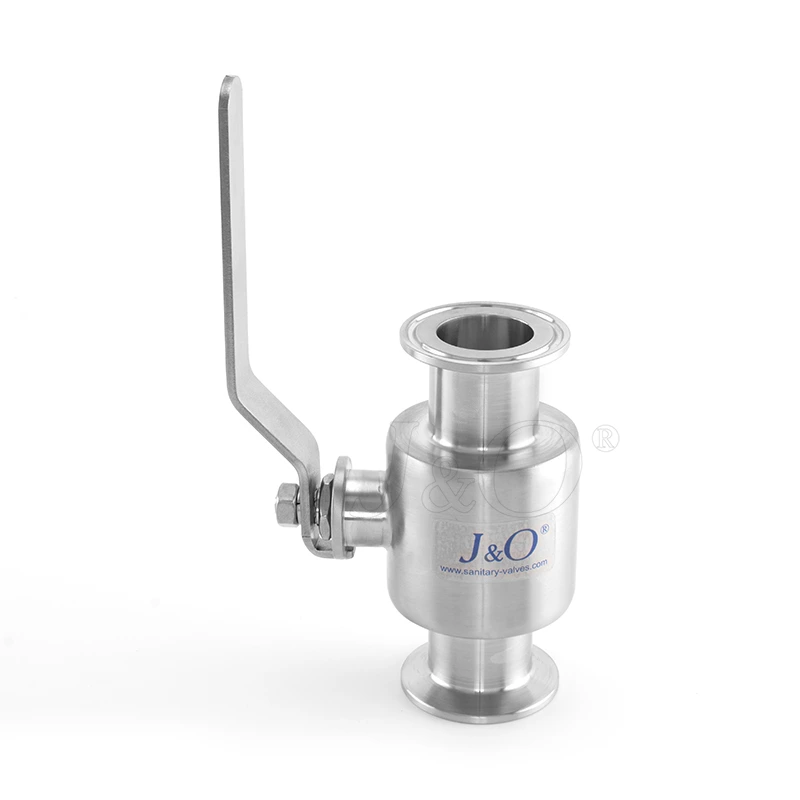

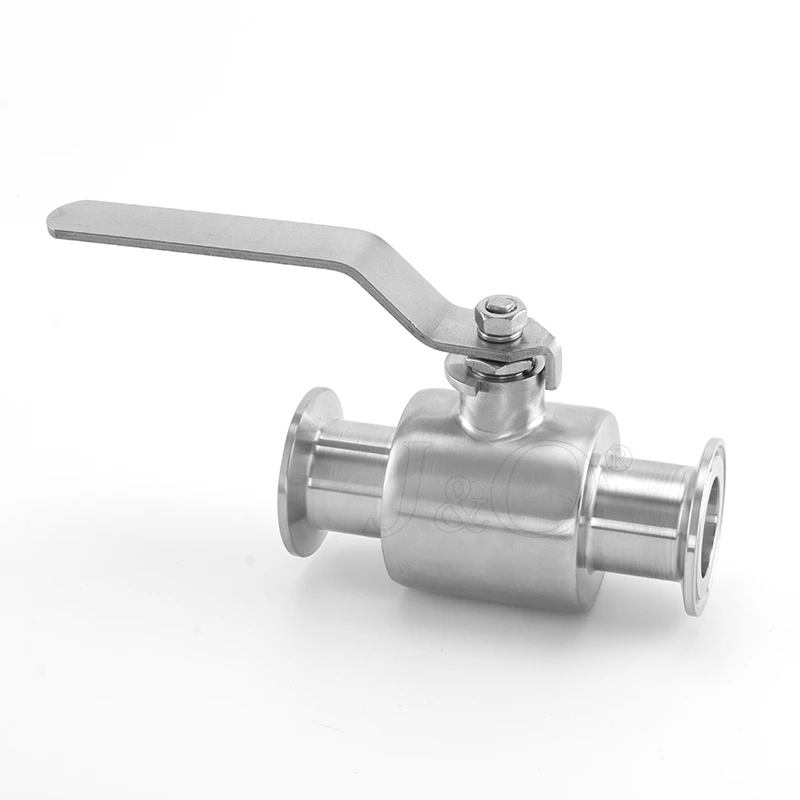

Liquid Cooling Stainless Steel One Piece Ball Valve for Data Center
- Medium:
- Coolant
- Material:
- SS304 SS316L
- Connection:
- Tri Clamp, Thread
- Pressure:
- 10Bar
- Temperature:
- -40 Degree
Liquid Cooling Stainless Steel One Piece Ball Valve for Data Center
#One Piece Ball Valve #Integrated Ball Valve #Data Center Ball Valve # Liquid Cooling Ball Valve

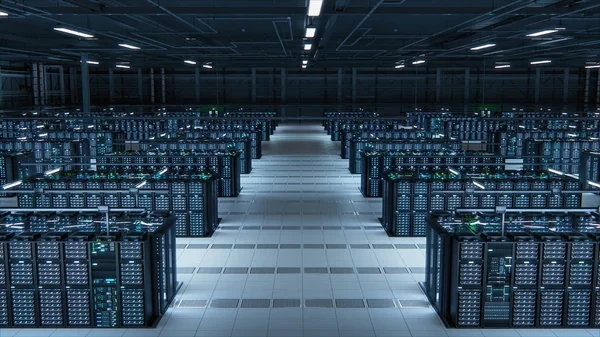

Liquid cooling valves, as key components in liquid cooling systems, are mainly used to control the flow, volume, direction and system pressure of the coolant, and are widely applied in data centers, electric vehicles, energy storage systems, high-power electronic equipment and other fields.
J&O One Piece Intergraed Ball Valve Advantage:
- One piece design, leak-proof connection
- Simple design, easy to install
- Corrosion-resistant and hygienic
- High-Performance
- Economic Application
- Easy Maintenance and replace
Product Description

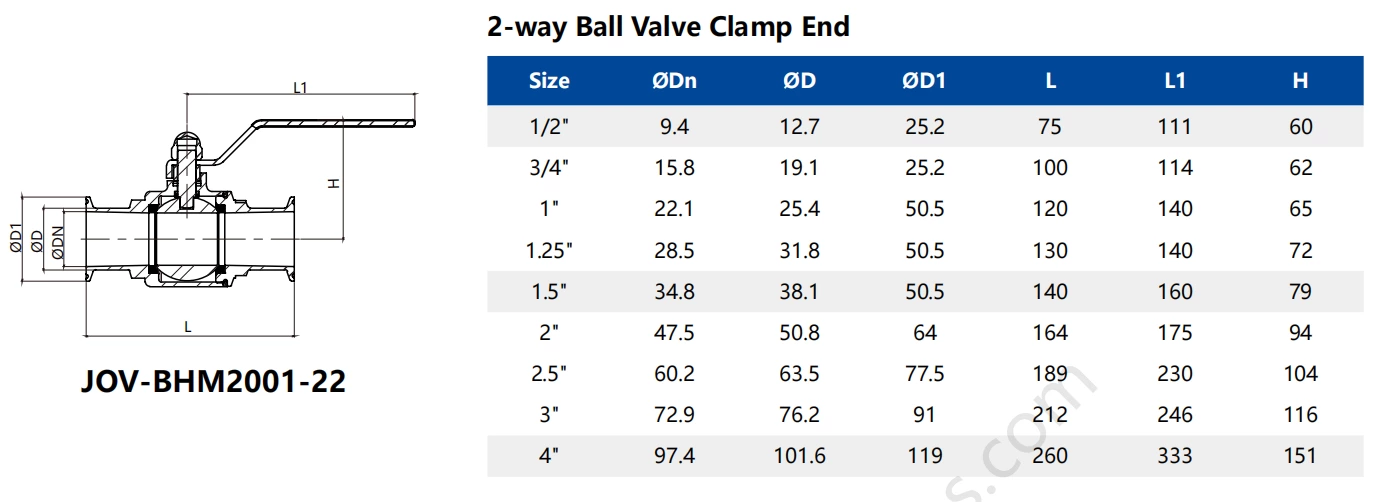

| Size: | 1/2"-4", DN10-DN100 |
| Temperature: | -40ºC-120 ºC |
| Pressure: | 10 Bar |
| Material: | AISI304, AISI316L |
| Gaskets: | PTFE FDA 177. 1550 Whatever The Connection, It Does Not Change The Total Length Of The Valve |
| Connection: | Clamp, Weld, Male, Flange, Standard With 3A, SMS, DIN, RJT, IDF. |
| Advantage: | Smaller And Lighter Than Other Type Ball Valve, Operating Torque Is Small, It Can Be Installed With Pneumatic Actuators And Electric Actuators. |
| Certificate: | PED/97/23/EC |
