Data Center Cooling Water Free Leak Stainless Steel 2PC Ball Valve
- Place of Origin:
- China
- Packing:
- Carton Case, Plywood Case
- Quantity:
- 10000PCS
- Payment:
- T/T, L/C
- Medium:
- Liquid Cooling Water
- Material:
- SS304, SS316L
- Connection:
- NPT, BSPT
- Specification:
- 1"-6"
- Pressure:
- 16Bar
- Temperature:
- -40 Degree to 120 Degree
- Gasket:
- PTFE
Data Center Cooling Water Free Leak Stainless Steel 2PC Ball Valve
- FVF 1000WOG stainless steel 2 PC thread ball valve is widely used in long-distance pipeline, Data Center, Energy Storage, Data Center Cooling Water, Liquid Cooling Water, oil refining, power, paper, chemical, pharmaceutical, steel, municipal, water and other industries.And it plays an important role in the oil pipeline.
- The main features of the stainless steel miniature ball valve 1000 WOG are reliable, compact, easy to maintain, simple structure, and the spherical sealing surface is often closed.
- It is easy to operate and maintain. It is suitable for natural gas, solvent, water, acid and other general working media.
Product Parameter
| Materials of Main Parts | |||
| No. | Part Name | Material List | |
| 1 | Body | CF8 | CF8M |
| 2 | Cap | CF8 | CF8M |
| 3 | Ball | CF8 | CF8M |
| 4 | Ball Seat | PTFE | PTFE |
| 5 | Gasket | PTFE | PTFE |
| 6 | Stem | SS304 | SS316 |
| 7 | Thrust Washer | PTFE | PTFE |
| 8 | Stem Packing | PTFE | PTFE |
| 9 | Gland Nut | SS304 | SS304 |
| 10 | Handle | SS304 | SS304 |
| 11 | Spring Washer | SS304 | SS304 |
| 12 | Stem Nut | SS304 | SS304 |
| 13 | Plastic Cover | Plastic | Plastic |
| Technical Specification | ||
| Connection standard | NPT,BSP,BSPT | |
| Nominal Pressure | 1000PSI | |
| Test Pressure | Shell Test | 10.4 MPa |
| High Pressure Closure | 7.6 Mpa | |
| Low Pressure Closure | 0.4~0.7 MPa | |
| Temperature Range | -40°C~ 180°C | |
| Applicable Medium | Water, oil, gas | |

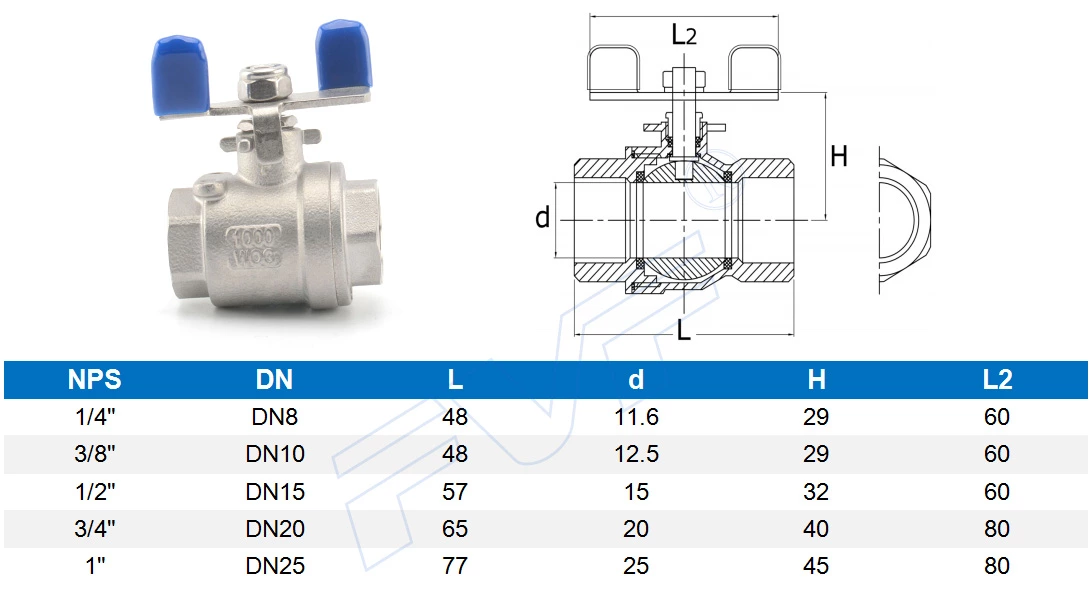

Dimensions
