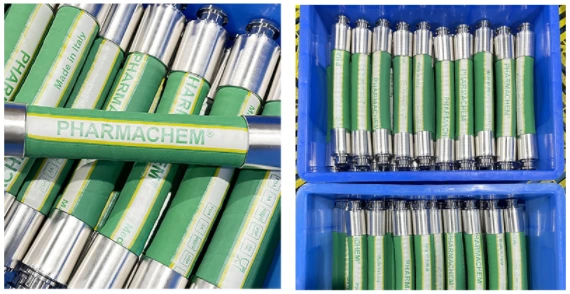

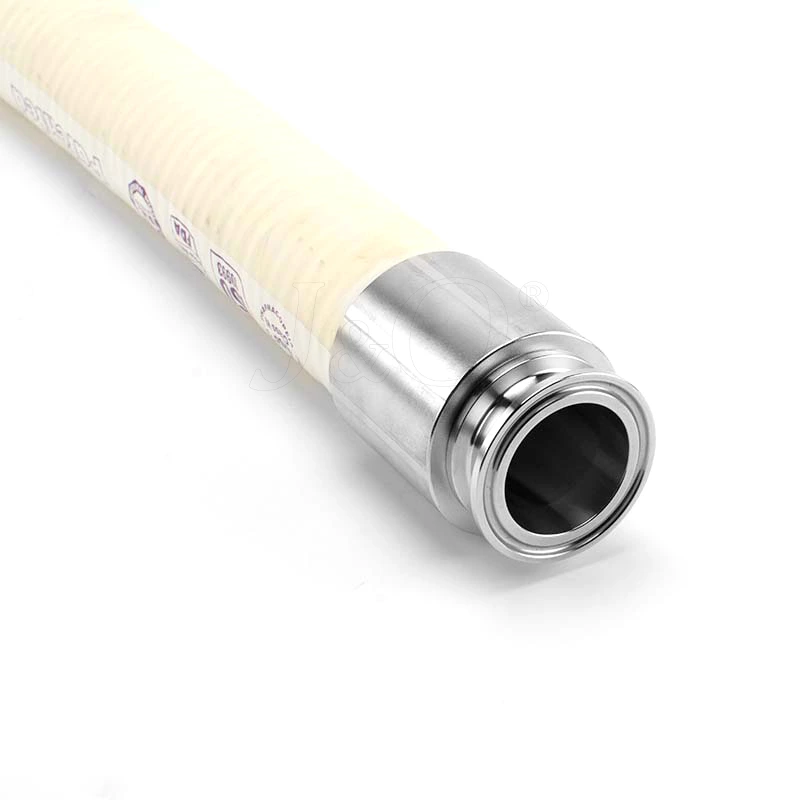

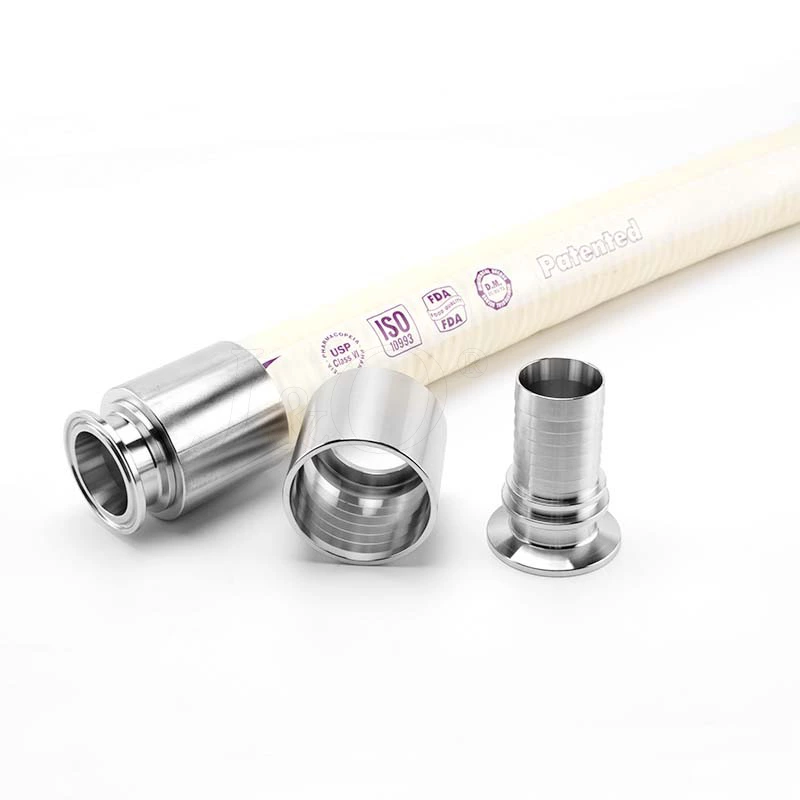

Sanitary Tri-Clamp Flexible Coupling Hose Tail with Food Grade Reinforced Steel Wire Teflon Flexible Hose
- Place of Origin:
- Wenzhou, China
- Packing:
- Suitable Packing for Sea/Air Transport
- Payment:
- T/T, L/C, Alipay, Paypal.
- Medium:
- Water, Oil,Gas
- Material:
- Teflon
- Connection:
- Hose
- Specification:
- 1/2"-4"
- Pressure:
- 10Bar
- Temperature:
- -40℃ to +200°C
Sanitary Tri-Clamp Flexible Coupling Hose Tail with Food Grade Reinforced Steel Wire Teflon Flexible Hose
Application:
For the chemical industry, foodstuff, pharmaceutical andcosmetic industry.
Used for chemicals and solvents, exceptfor chlorine trifluride, chlorine and fluorine gas, oxygendifluride, phosgene and molten alkalis (for ex. dodium)
Technical Description:

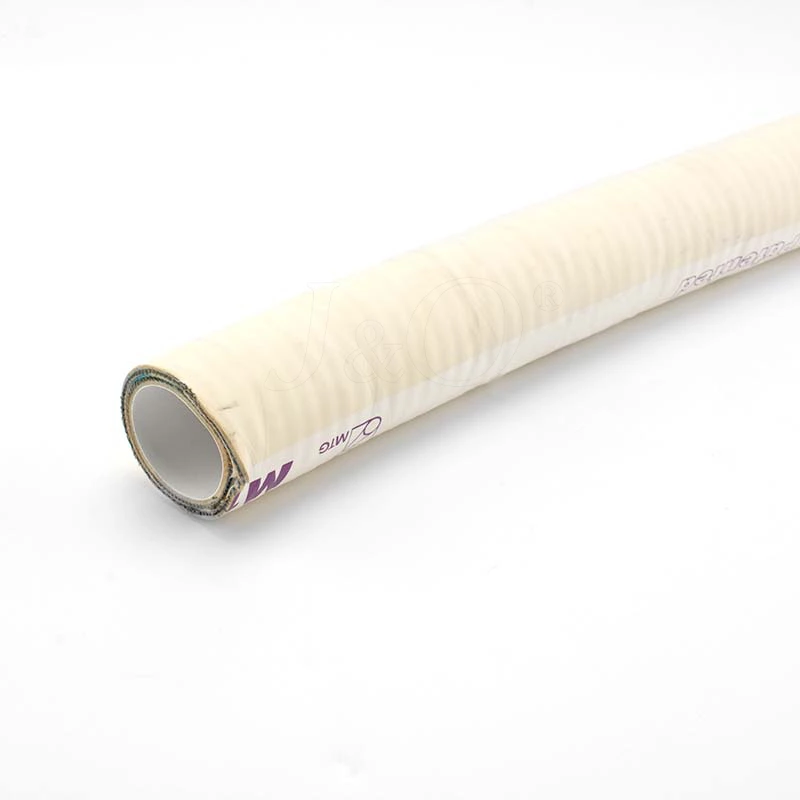

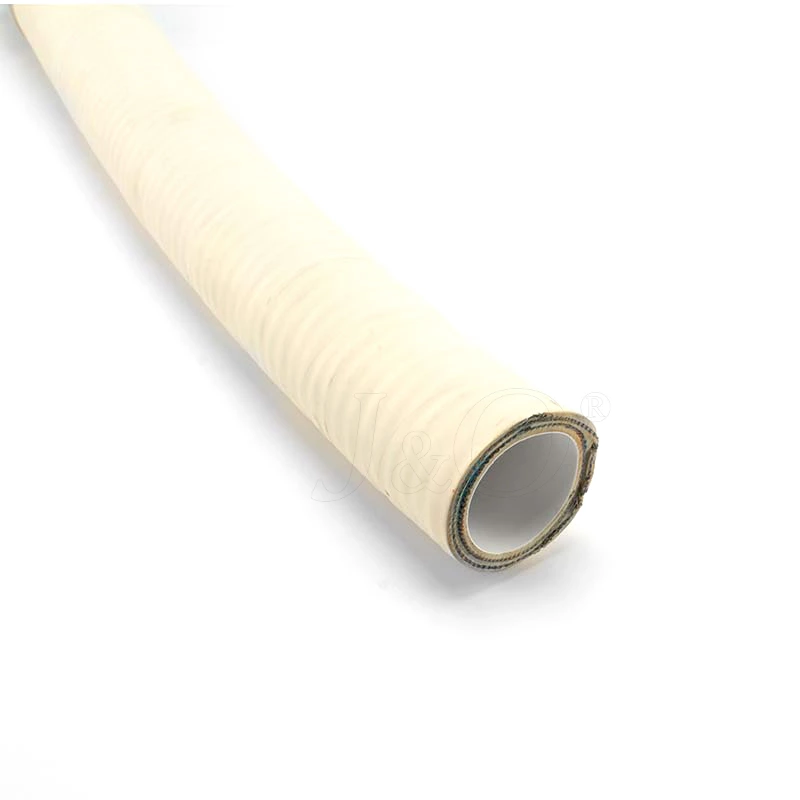

Tube: TEFLON" PTFE, co-extruded, clear/white pigmented.smooth.
TEFLON" PTFE is a polymer with excellent resistanceto high temperature, mechanical stress and oxidation.
Reinforcement: Synthetic plies, galvanized wire helices ascopper wires to discharge static electricity.
Cover: Sythetic rubber, smooth, green, abrasion, aging andozone resistant.
Temperature Range:
From -40℃ to +200°C
Standard/Approval:
Complies with FDA21 CFR 177.1550 standards, USP XXXVIClass Vl, IS0 10993 Sections 5.10.11:2009, EUPOREANREGLEMENT 1935/2004/CE AND 10/2011/CE, 3A Sanitary Standard Class ll.
Product Description
| Product Name: | Sanitary Flexible Hose |
| Temperature: | -40ºC-200ºC |
| Pressure: | 190psi, depending on size |
| Material: | Teflon |
| Connection: | Clamp |
| Length: | As per customer's requirement |
We can supply with weld end, clamp end and thread end. If you need more information, please contact us, thank you.
