Stainless Steel Bellows Metal Hose Expansion Joint Flange Flexible Sight Glass Compensator
- Place of Origin:
- Wenzhou, China
- Packing:
- Carton Cases, Plywood Case
- Payment:
- T/T, L/C, Alipay, Paypal
- Medium:
- Water, Oil
- Material:
- SS304, SS316L
- Connection:
- Flange
- Specification:
- 1/2"-8"

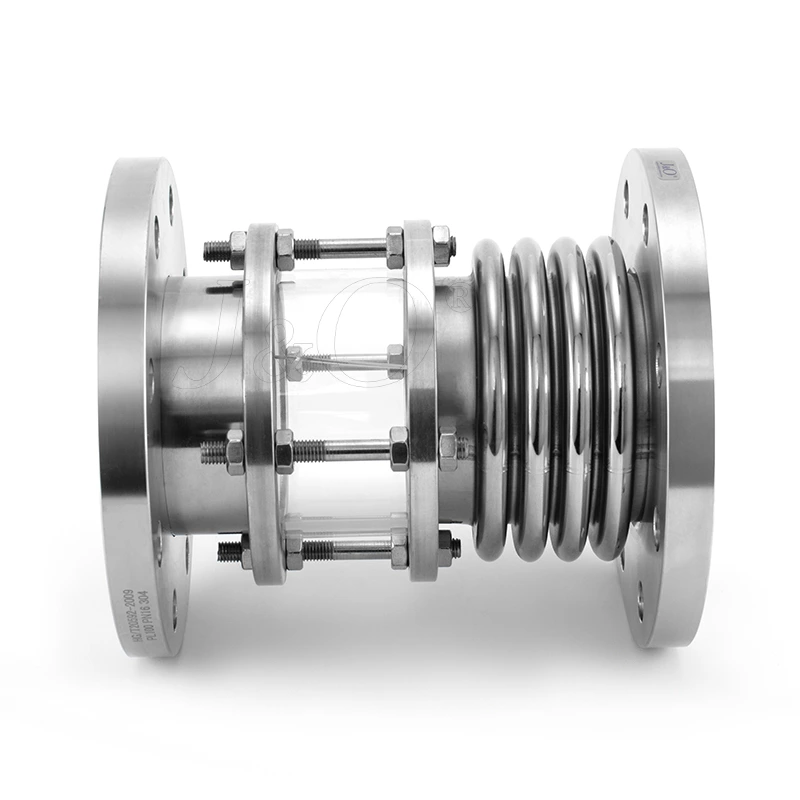

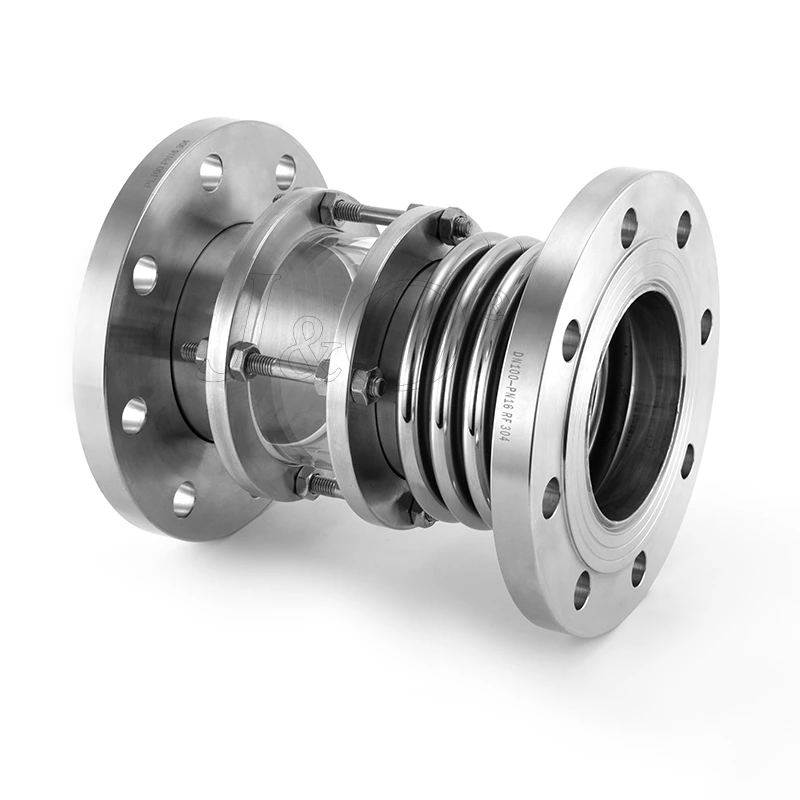

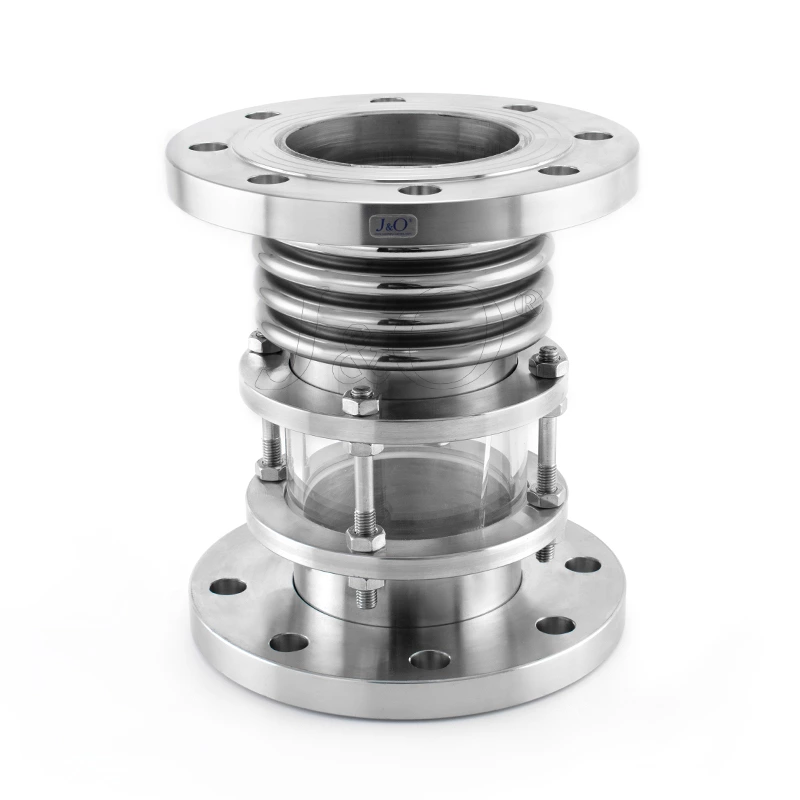

Stainless Steel Bellows Metal Hose Expansion Joint Flange Flexible Sight Glass Compensator
The flexible compensator consist of metal bellows, Sight glass, two flanges combined together.
Flexible connection provides a secure, leak proof connection and easy to clean, it can be cleaned in place and are quick to set-up and take down, and it is widely using for Food, Pharmacy, and Liquid Cooling Data Center.
Specification:
- Hose Material: SS304/SS316L
- Connection Ends: Flange
- Working pressure: 10Bar, 16Bar
- Working Temperature: -50°-180°
- Size: 1"-6"
- Length: 12",24",36",48",72",98",106" or Customized
